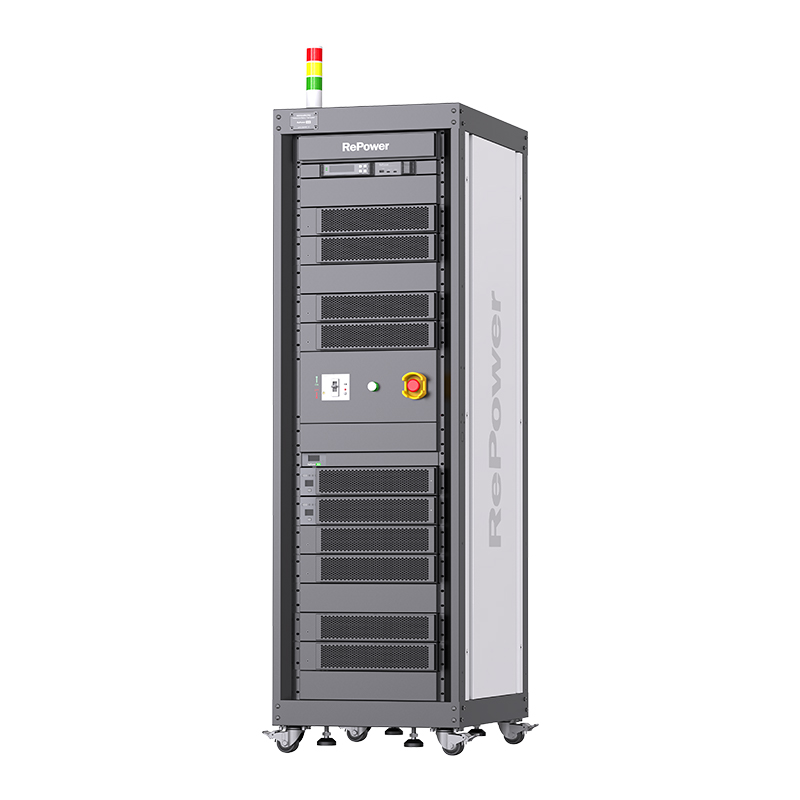

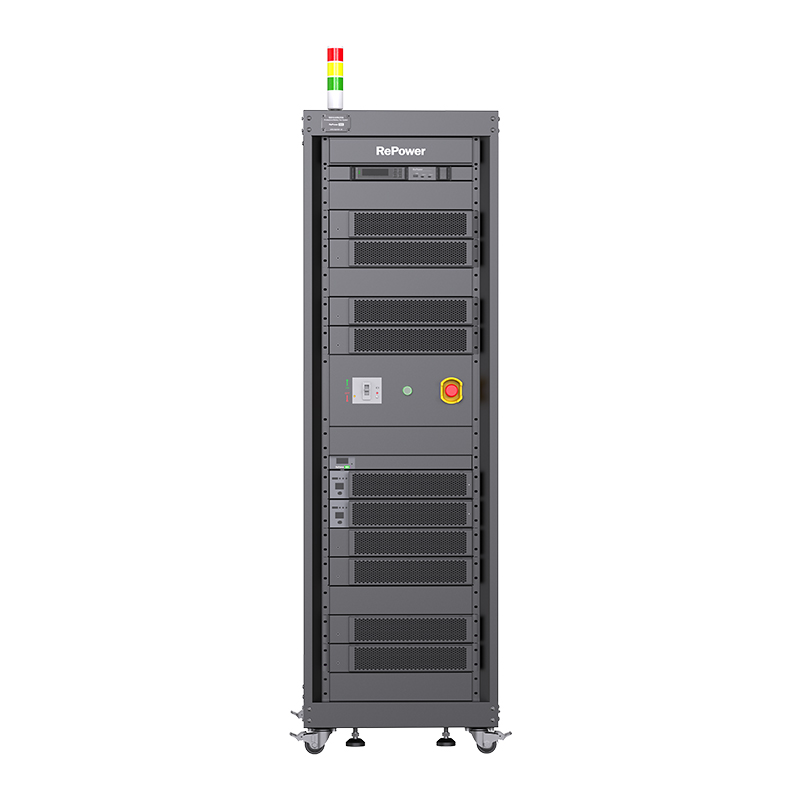

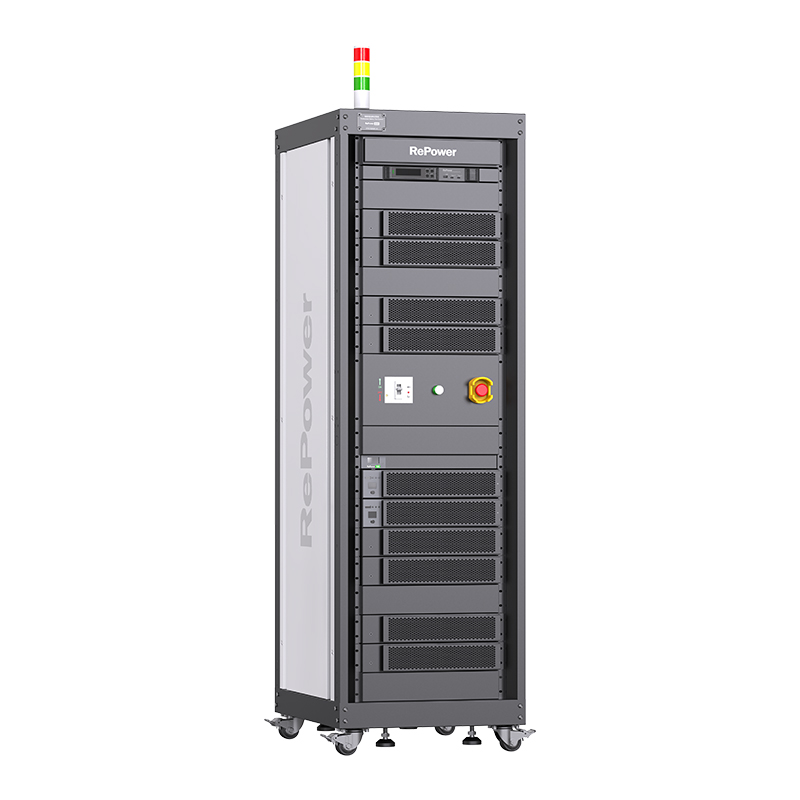

HRCDS-5V1000A-HV
Single-Channel 1000A 5V Cell Test System
HRCDS-5V1000A-HV
Applications
The Single-Channel 1000A 5V Cell Test System supports high-current testing up to 1000A. A single channel meets the high-rate testing requirements of large-capacity energy storage cells and EV battery cells, significantly reducing equipment procurement and maintenance costs. It is primarily used for cycle life testing and quality control in battery production and laboratories across various chemistries, including lithium-ion, lead-acid, nickel-cadmium, and nickel-metal hydride batteries. The system provides accurate real-time sampling, storage, analysis, and early warning for key battery parameters, delivering reliable data for battery R&D and production.
Test Functions
Cycle Life Testing
Capacity Testing
Charge/Discharge Characteristic Testing
Charge/Discharge Efficiency Testing
Charge Retention Testing
Operating Profile Testing
Pulse Testing
Overcharge/Overdischarge Testing
Advantages & Features
1000A Output per Channel A single channel delivers a rated current of 1000A, meeting the rate-performance testing requirements of large-capacity energy storage cells and EV battery cells while eliminating current imbalance caused by multi-channel parallel operation. | Multiple Ranges, High Accuracy Intelligent multi-range current selection enables versatile testing with one system. Voltage/current accuracy: ±0.02%F.S | Current Response Time ≤5ms Ultra-fast current response accurately reproduces pulse operating profiles, ensuring authentic and reliable test data. |
Supports 24h Offline Operation Full-function offline operation after network disconnection for ≥24h, with seamless resumption once communication is restored to ensure data integrity and security; Supports channel data migration, allowing unfinished tests to be transferred to another channel if a channel fails. | High-Voltage DC Bus Architecture Distributed Layout + Energy Management System The high-voltage DC bus architecture and distributed layout significantly improve facility space utilization. Combined with the EMS intelligent energy management system, the solution delivers high regenerative efficiency, enables energy reuse across multiple channels, and optimizes energy scheduling to substantially reduce energy consumption. | Intelligent Test Software Supports multidimensional matrix testing. Users can import/export multidimensional parameter tables (such as temperature, voltage, and SOC), customize changes in horizontal and vertical axis signals, and generate corresponding current test profiles. |
Product Specifications | ||
Product Model | HRCDS-5V1000A-HV | |
Rated Current per Channel | 0.025~100A / 100~300A / 300~600A / 600~1000A | |
Voltage Accuracy | ±0.02%F.S | |
Current Accuracy | ±0.02% F.S, Supports multi-range grading. | |
Minimum Output Current | 25mA | |
Current Response Time | ≤5ms (10%F.S~90%F.S) | |
Sampling Time | 10ms | |
Operating Profile Pulse (Pulse Width) | 20ms | |
Parallel Operation | Supports lossless multi-channel parallel operation | |
Communication Interface | LAN | |
Note: Specific models and parameters are subject to the corresponding technical specifications.
