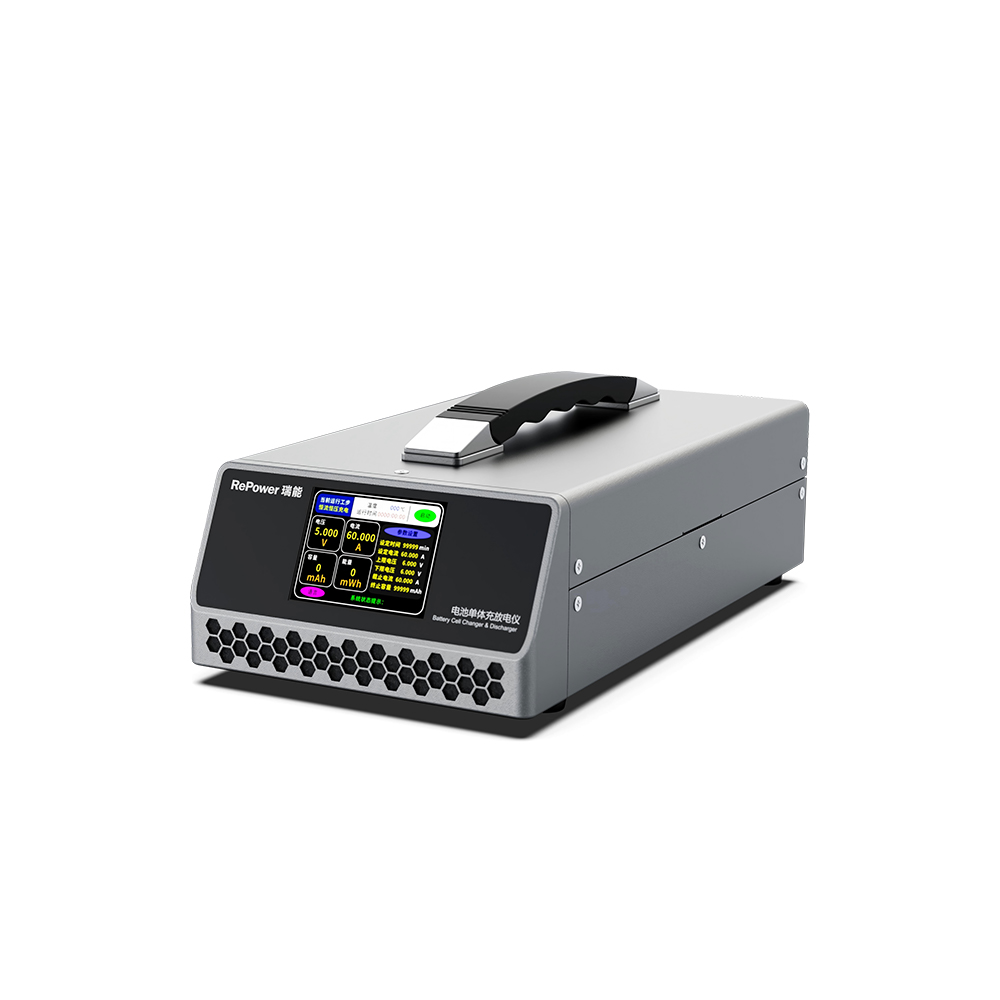

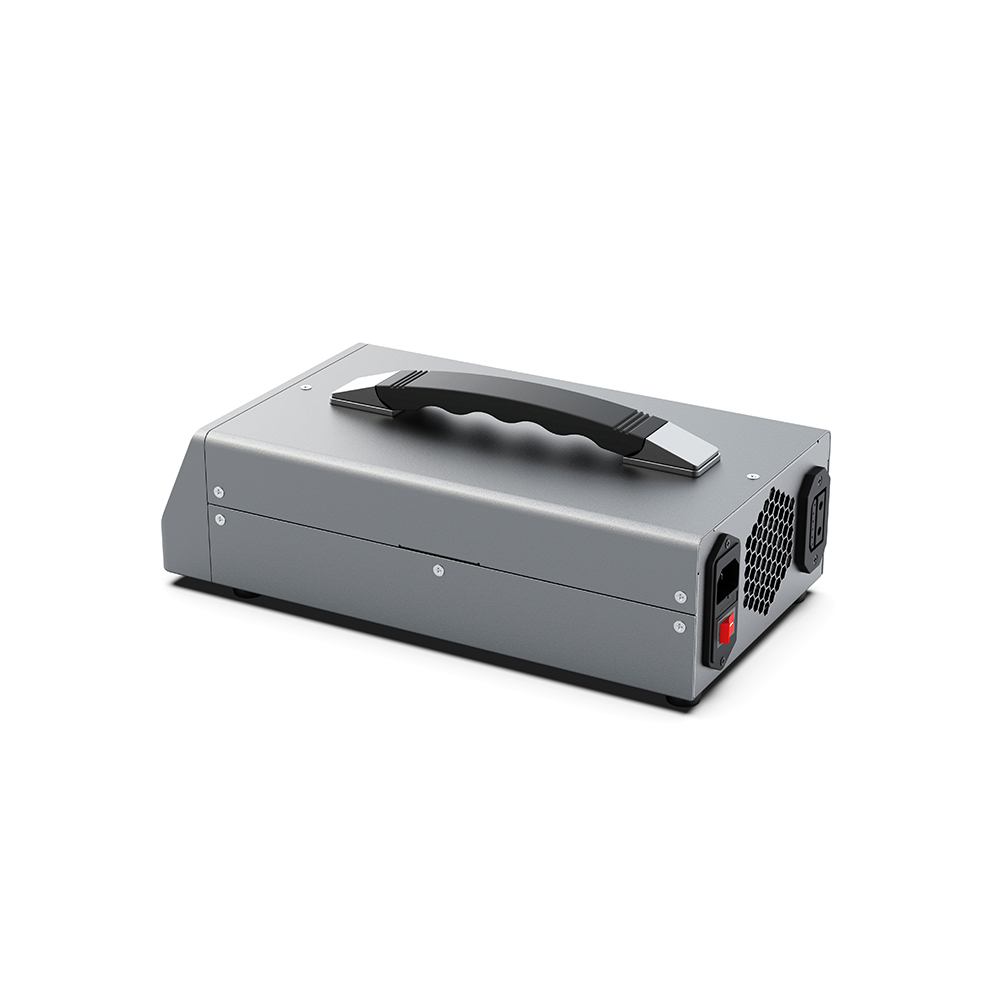

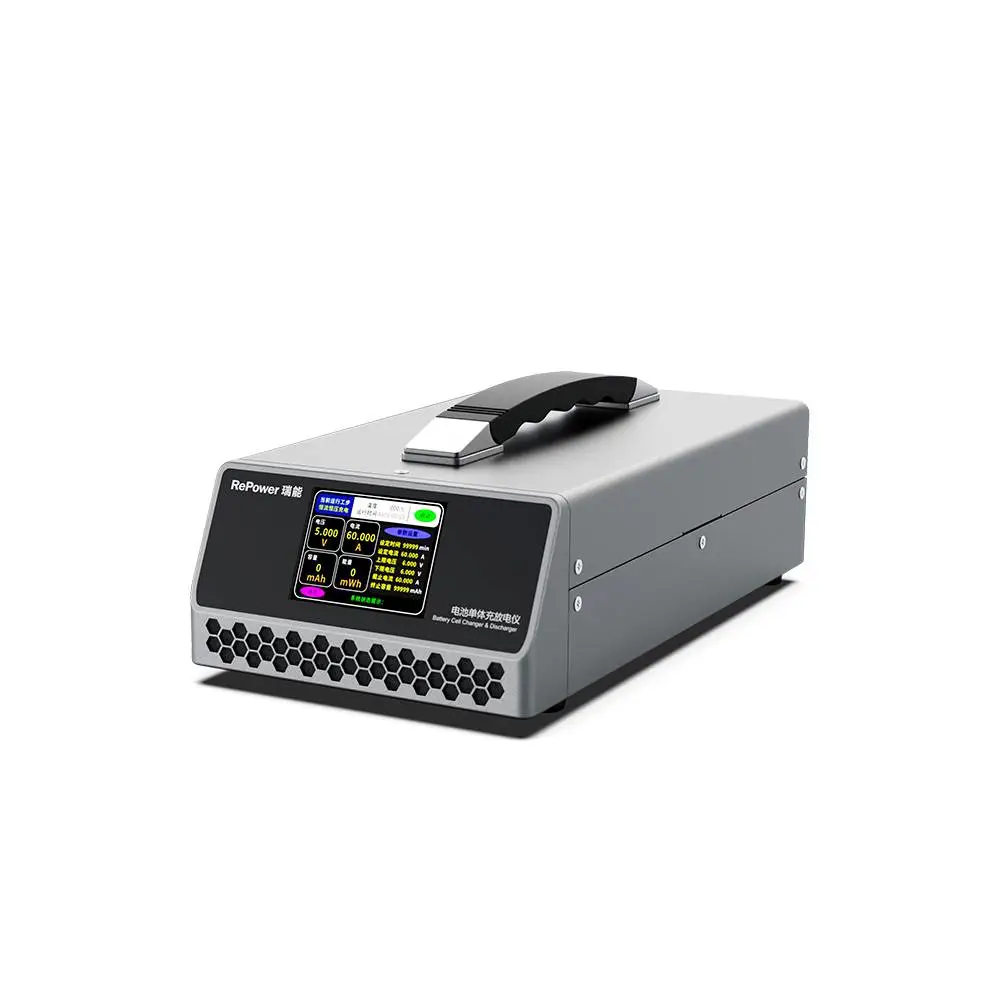

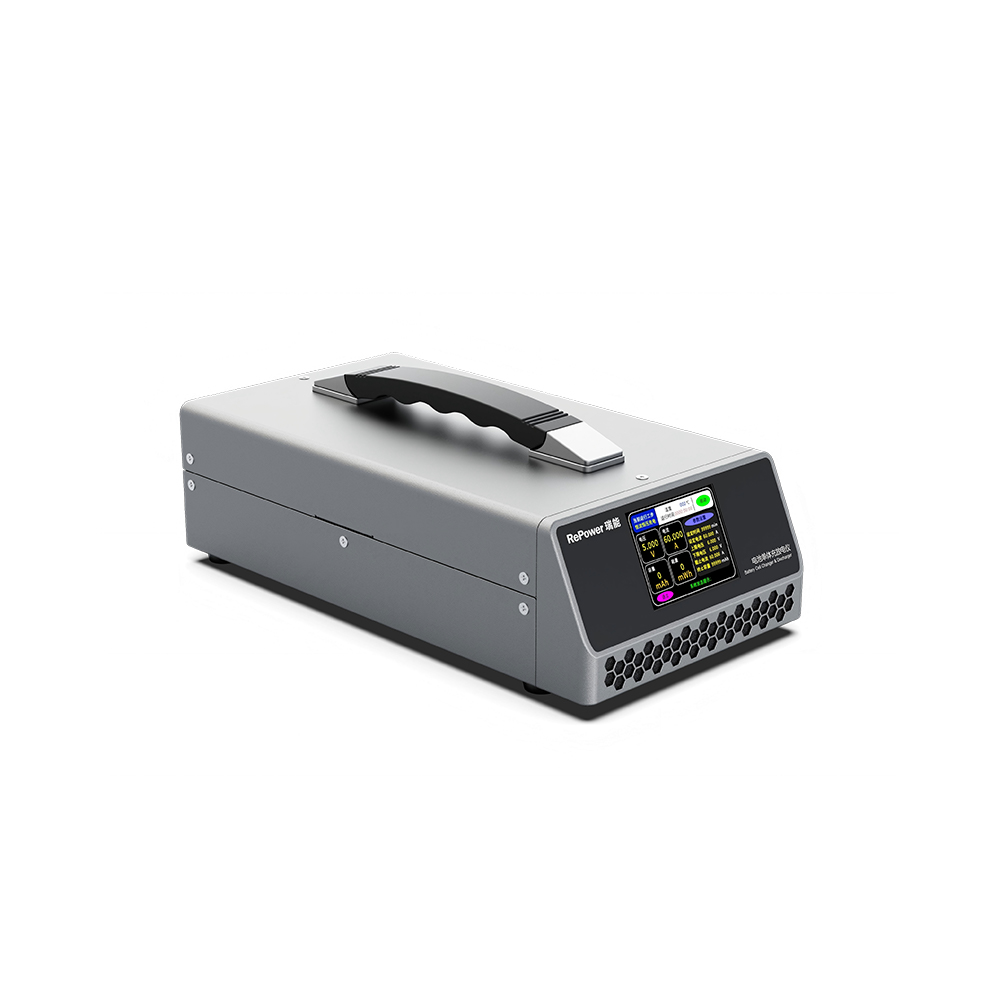

Portable Battery Cell Charge/Discharge Maintenance Tester
Portable Battery Cell Charge/Discharge Maintenance Tester
|  |
Applications
A high-precision maintenance and test tool designed for lithium-ion cells. Its built-in high-precision power supply enables accurate and efficient charging and discharging, with both CC/CV charging and CC/CV discharging. It can quickly charge or discharge individual cells in a module whose voltage is too high or too low, with no cross-cell voltage limitation, enabling cell-level balancing maintenance. Precise capacity calibration is also provided for cell disassembly and replacement, performance testing, and cell regrouping and matching.
Test Functions
CC/CV Charging | CC/CV Discharging | Balancing Maintenance | Capacity Calibration |
Key Features
Integrated Charging and Discharging Combines charging and discharging in one unit, covering all testing and maintenance needs of battery pack service personnel. | Multiple Protection Mechanisms Supports user-defined multilevel shutdown protection thresholds and automatically monitors and triggers protection during testing, enabling unattended completion of the entire test process. |

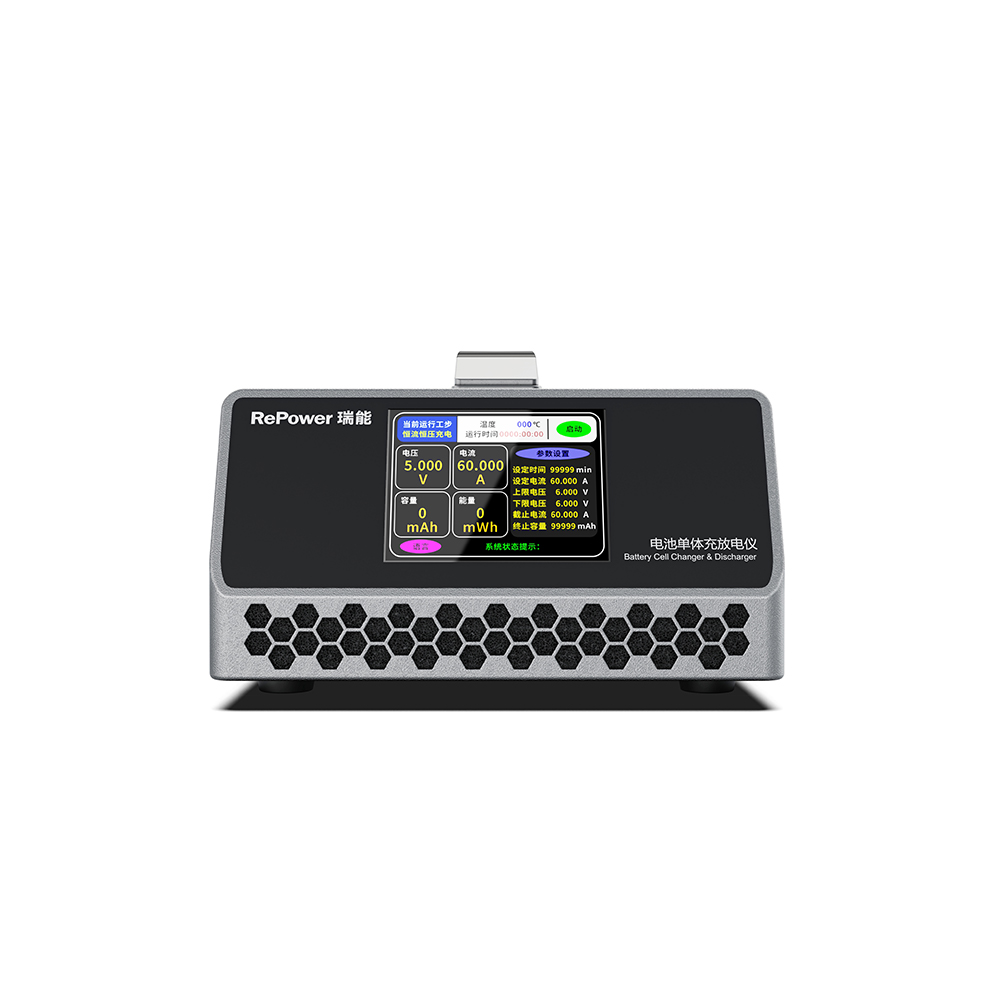

User-Friendly Interface Lightweight and portable with a color LCD and intuitive operation. Charge/discharge data can be viewed without a PC for rapid assessment of cell condition and quality. | Communication Expansion An optional RS485 data interface supports data upload and remote control. |
| Product Specifications | |
| Power Supply | 90Vac-264Vac |
| Grid Frequency | 48-62Hz |
| Measurement Range | Single Cell: 0-5V |
| Charging Voltage Setting | 0-5V Adjustable |
| Charging Current Setting | 0-60A Adjustable |
| Discharge Voltage Setting | 0.5-5V |
| Discharge Current Setting | 0-60A Adjustable |
| Operating Modes | Charging Mode / Discharging Mode |
| Charging Mode | CC/CV |
| Discharging Mode | CC/CV |
| Operating Temperature | -20~+55°C |
| Cooling Method | Forced-air Cooling |
Note: Refer to the applicable technical specification for the exact model and parameters.
