POREOL-6501EB

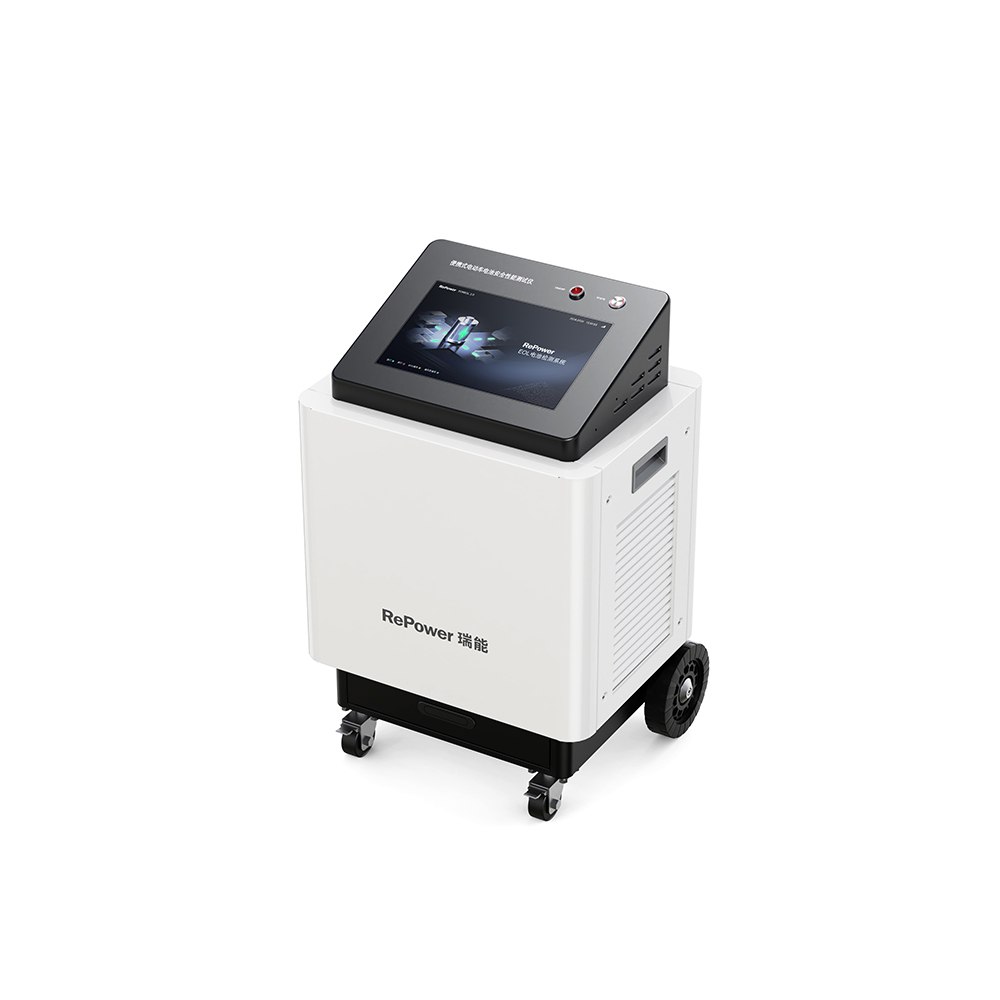

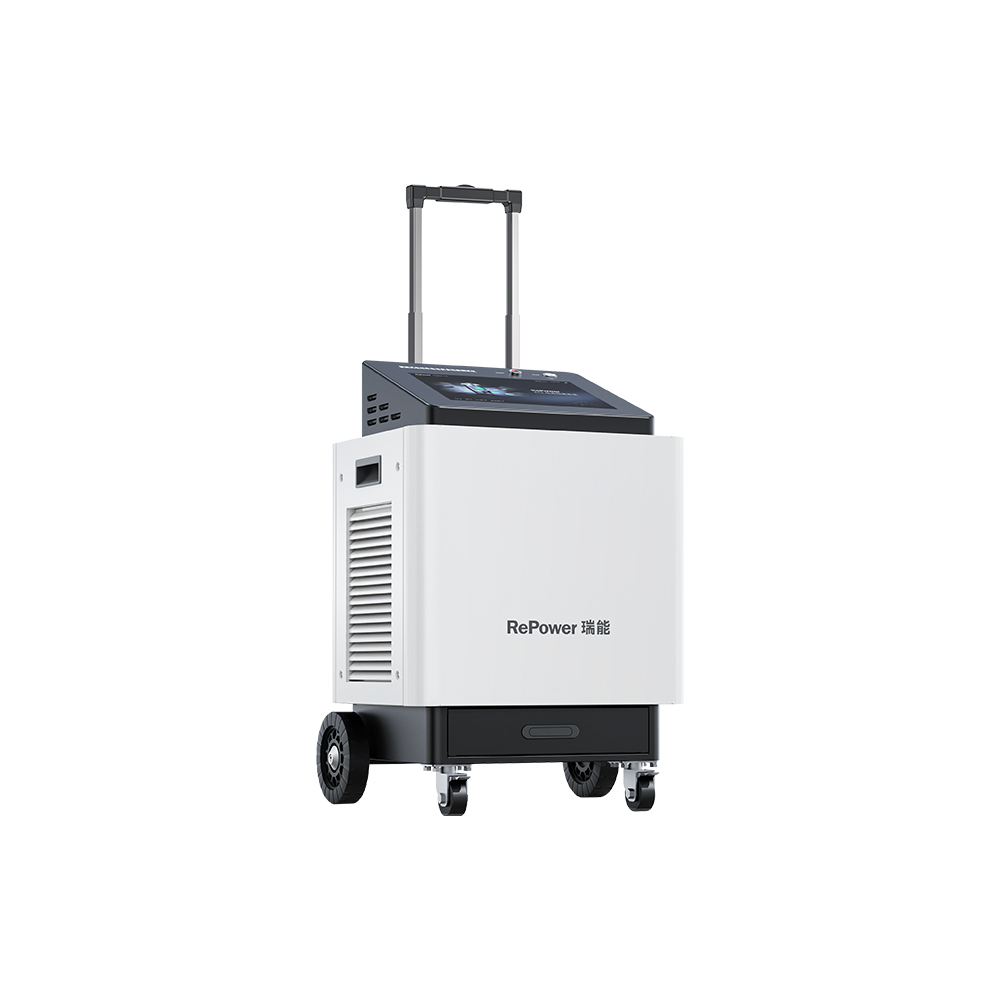

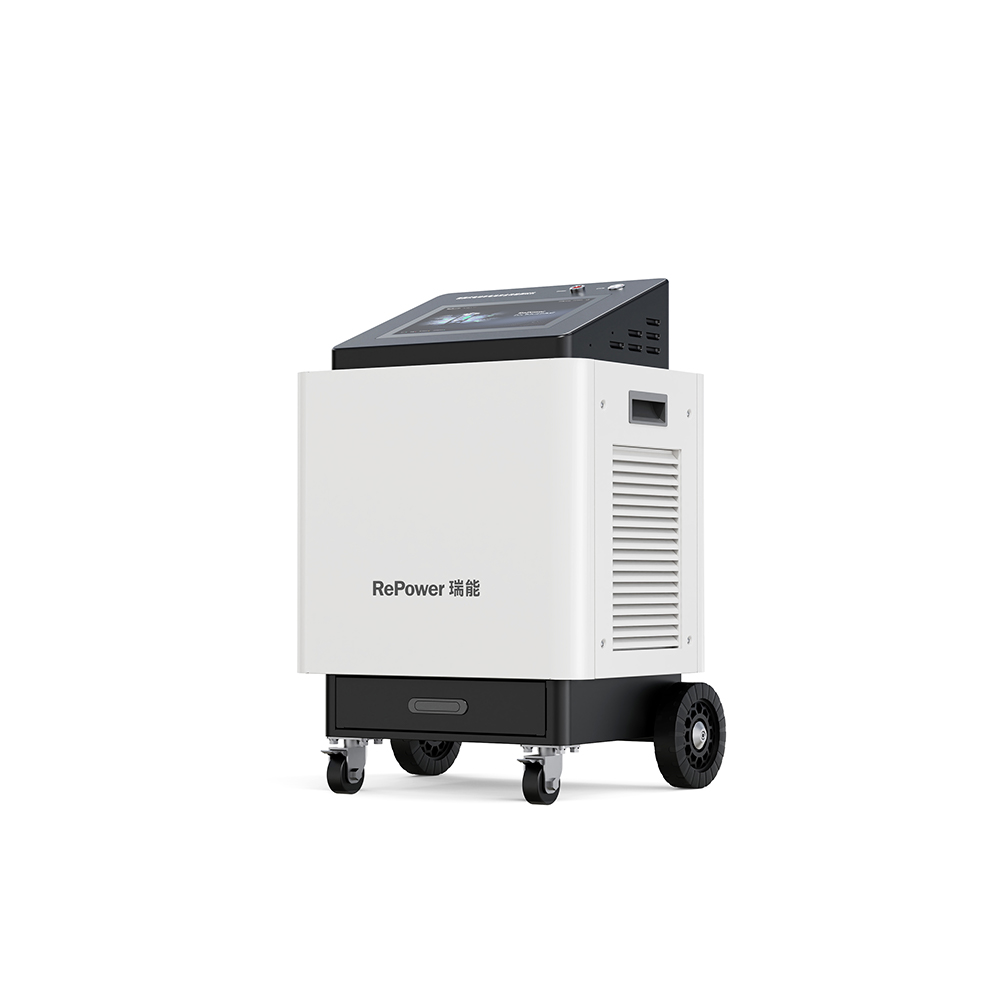

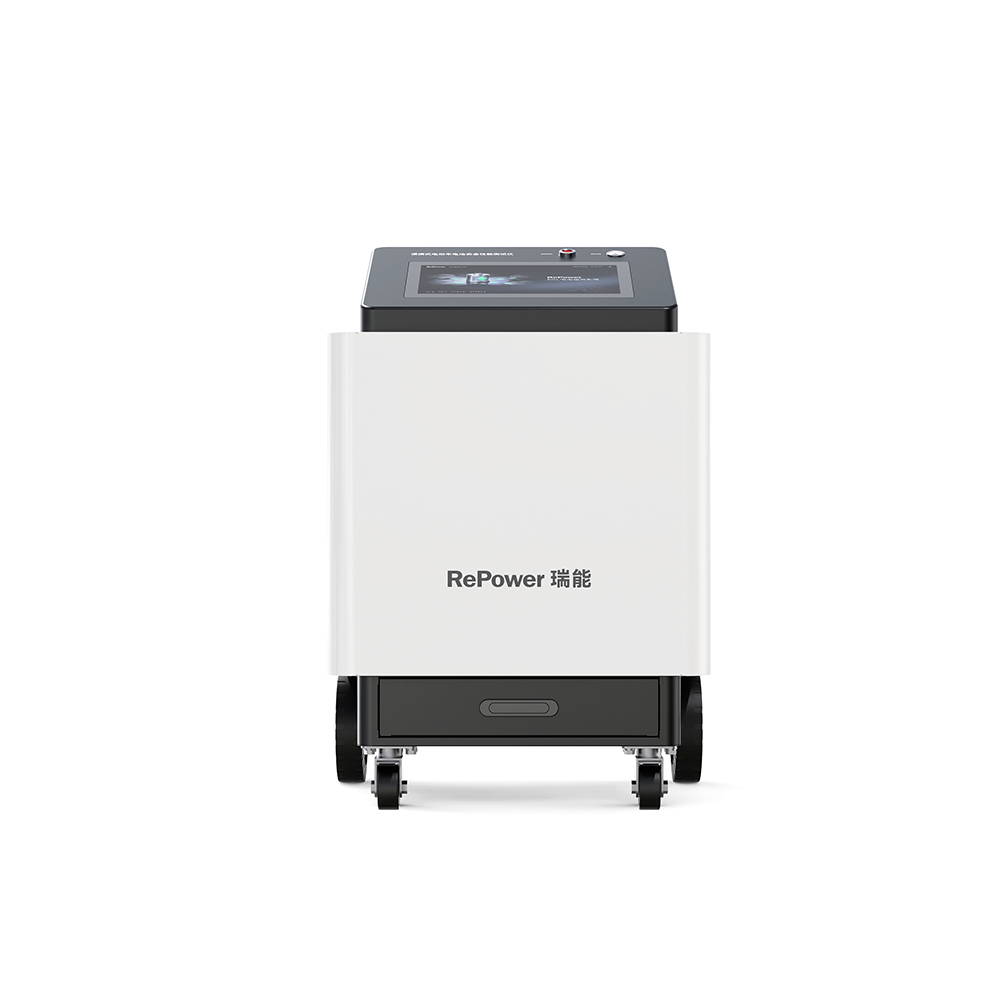

Portable Electric Vehicle Battery Pack Testing and Analysis Equipment POREOL-6501EB |  |
Applications
REPOWER's portable battery pack testing and analysis equipment provides fast, accurate, multifunctional assessment of battery pack health, delivering an end-to-end solution from fault diagnosis and data analysis to recommended actions. It is primarily used throughout the lifecycle of battery packs for electric two- and three-wheelers, including production, operations management, after-sales service, recycling, and reuse.
Test Functions
Multiple Communication Interfaces | Undervoltage Battery Activation | Charge/Discharge Test | Pack Voltage Test | ||||
Voltage and Voltage Difference Test | Temperature and Temperature Difference Test | DC Internal Resistance Test | Manufacturer Information Retrieval | ||||
Enclosure Insulation Test | MOSFET Functional Test | State-of-Health Reading and Evaluation | State-of-Charge Adjustment |
Key Features
Designed specifically for testing battery packs used in electric two- and three-wheelers and electric motorcycles. |
The compact design and intelligent upgrades greatly simplify testing and improve maintenance efficiency. |
Supports differentiated function customization in collaboration with battery manufacturers. |
Optimizes battery pack safety management and screening efficiency throughout the entire process. |
Flexibly supports production testing, maintenance testing, safety inspection, recycling, second-life applications, and other scenarios. |
Automated intelligent battery data acquisition, analysis, and processing ensure data integrity, traceability, and high reliability. |
| Product Specifications | |
| Insulation Resistance | 1kV/10GΩ |
| Charging Voltage Range | 0V~40V; 40V~80V |
| Charging Voltage Accuracy | ±0.05% F.S. |
| Charging Current Range | 0mA~4000mA |
| Charging Current Accuracy | ±0.05% F.S. |
| Discharge Voltage Range | 5V~80V |
| Discharge Voltage Accuracy | ±0.05% F.S. |
| Discharge Current Range | 0mA~4000mA |
| Discharge Current Accuracy | ±0.05% F.S. |
| Supported Communication Interfaces | CAN, single-wire communication, RS485... |
| Remote OTA Function | Supported |
| Noise | <60dB |
| Equipment Dimensions (W*D*H mm) | 506*407*727.5 |
| Equipment Weight | <35kg |
Note: Refer to the applicable technical specification for the exact model and parameters.
