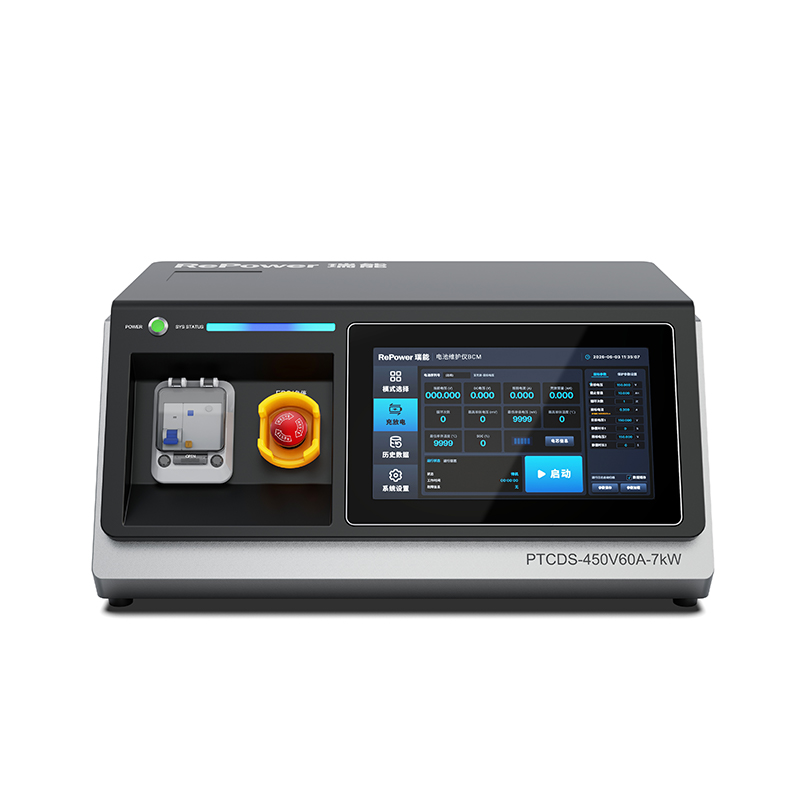

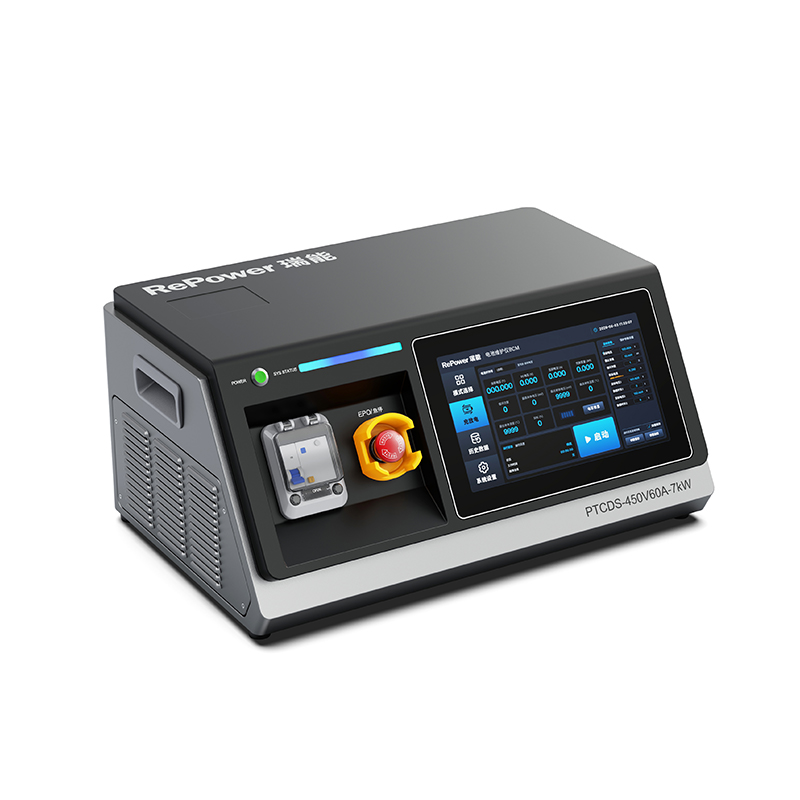

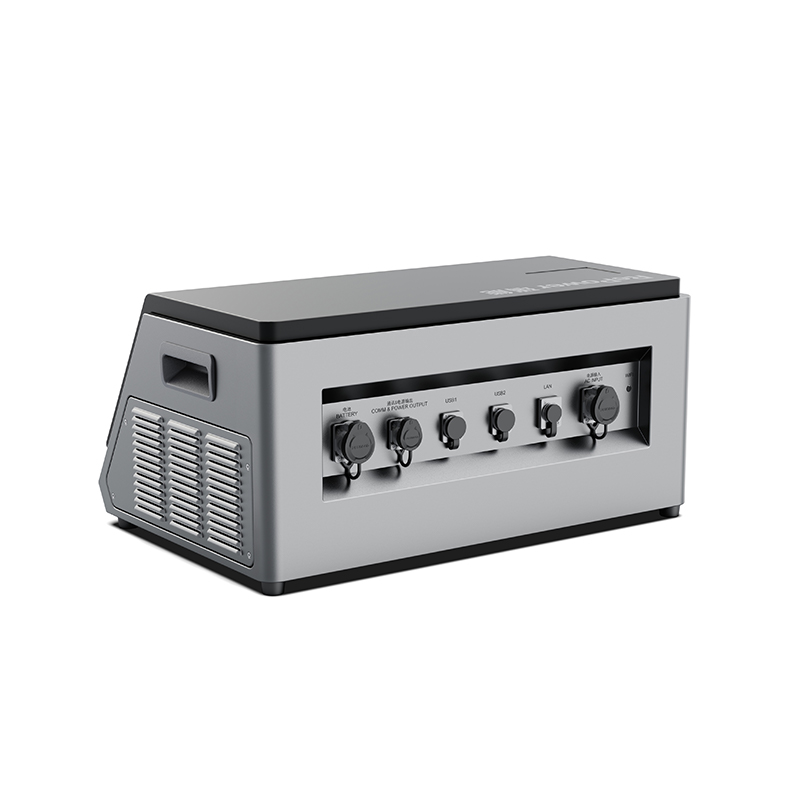

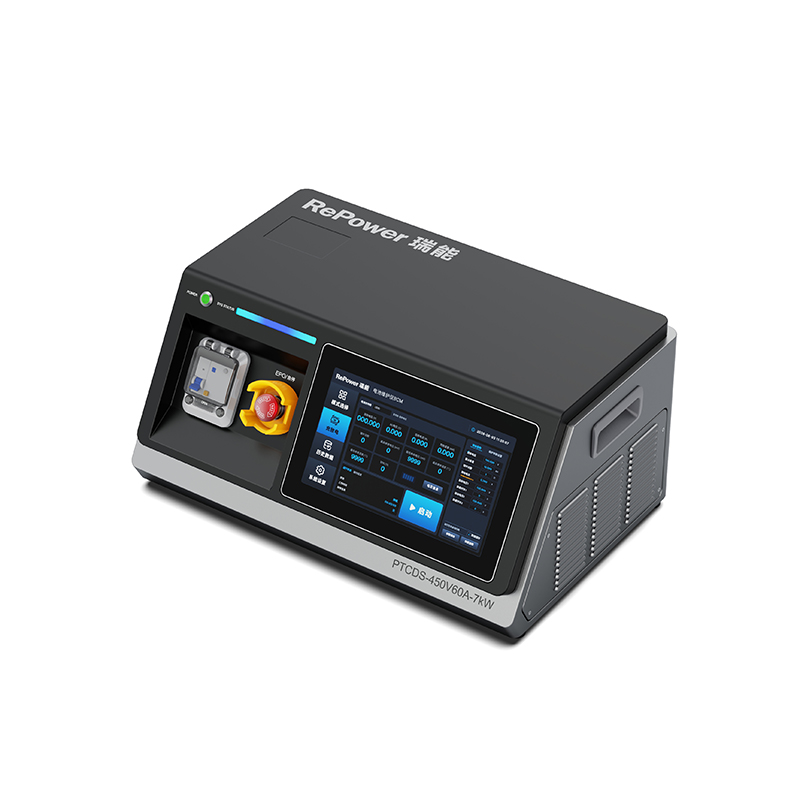

PTCDS-450V60A-7kW
Portable Battery Module Charge/Discharge Maintenance Tester PTCDS-450V60A-7kW |  |
Applications
Professional equipment designed for full-lifecycle battery module maintenance. Integrating advanced grid-tied discharging technology with a multifunctional design, it features a compact, lightweight, and highly portable form factor. It supports battery module charge/discharge testing and individual cell voltage/temperature sampling and storage, providing an efficient and accurate all-in-one solution for battery maintenance.
Module Charge/Discharge Test | Individual Cell Test |
Key Features
Wide-Voltage Charge/Discharge Testing The wide-voltage design supports battery packs at different voltage levels, eliminating the need to change equipment frequently. | Bidirectional Energy Conversion Bidirectional power conversion technology efficiently converts energy during charging and automatically switches to grid-feedback mode during discharging, reducing energy consumption. | Intelligent Data Management Generates battery voltage curves; acquired data can be stored internally and exported via a USB drive for convenient traceability. |
Individual Cell Monitoring Integrated BMS communication enables individual cell voltage acquisition and temperature sampling within battery modules. | Multi-Layer Safety Protection Provides dual protection for the grid side (AC overvoltage/undervoltage, overcurrent, and short circuit) and the battery side (DC overvoltage/undervoltage, overcurrent, short circuit, reverse polarity, and overtemperature). | BMS Communication Management Supports the CAN protocol and seamless integration with mainstream BMS systems. External acquisition modules and wiring harnesses are supported, along with OTA and host-computer upgrades. |
| Product Specifications | ||
| Equipment Input | Power Configuration | Single-phase + PE |
| Voltage Range | 175Vac~265Vac | |
| Grid Frequency | 40Hz~70Hz | |
| Equipment Output | Output Voltage Range | 10Vdc~450Vdc |
| Output Current Range | 0~60A | |
| Maximum Output Power | 7kW | |
| Voltage Regulation Accuracy | ±0.05% | |
| Current Regulation Accuracy | ≤±0.1% | |
| Battery BMS Communication | Supports CAN communication; reads and parses BMS CAN message data, which can be used as charge/discharge cutoff conditions | |
| Ambient Temperature | -20°C~+55°C | |
| Relative Humidity | ≤95% RH, non-condensing | |
| Cooling Method | Forced-air Cooling | |
| Equipment Dimensions (W*H*D) | 568*355*273mm | |
Note: Refer to the applicable technical specification for the exact model and parameters.
