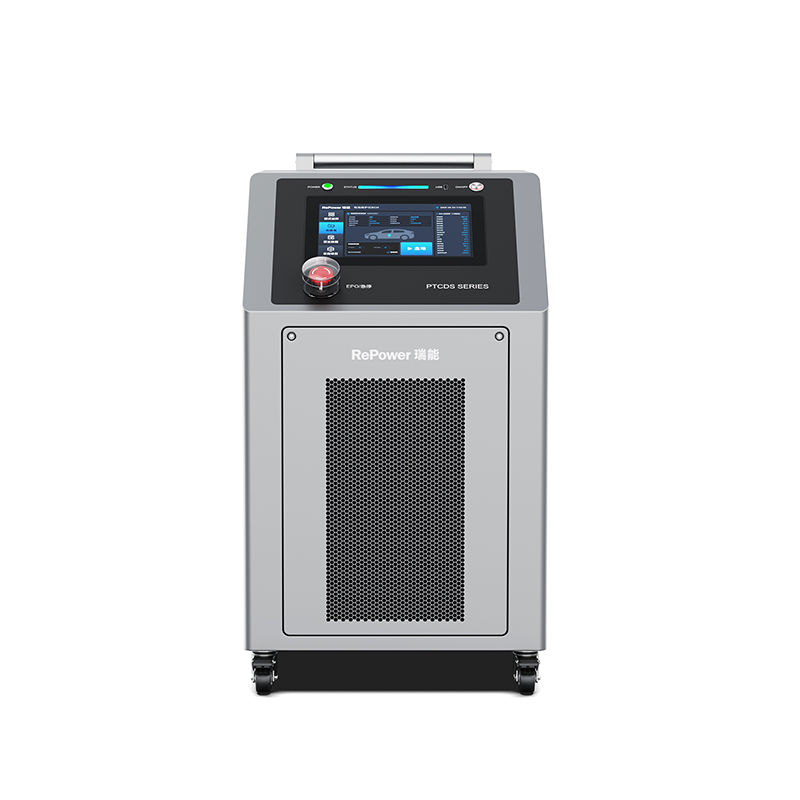

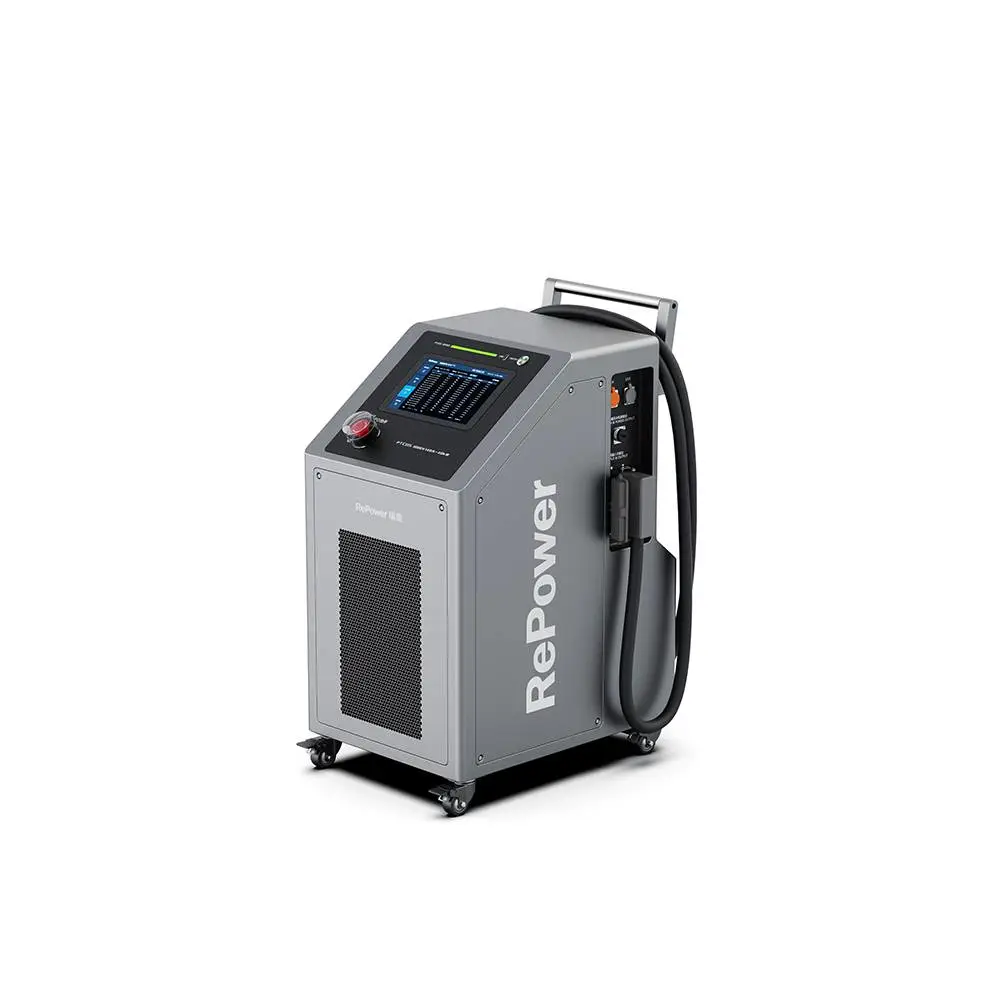

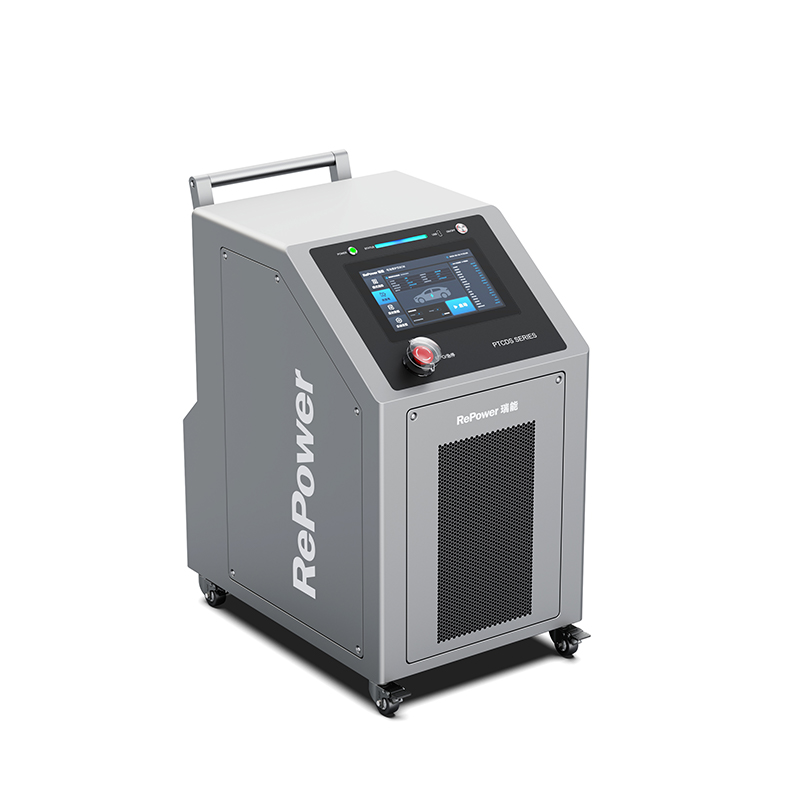

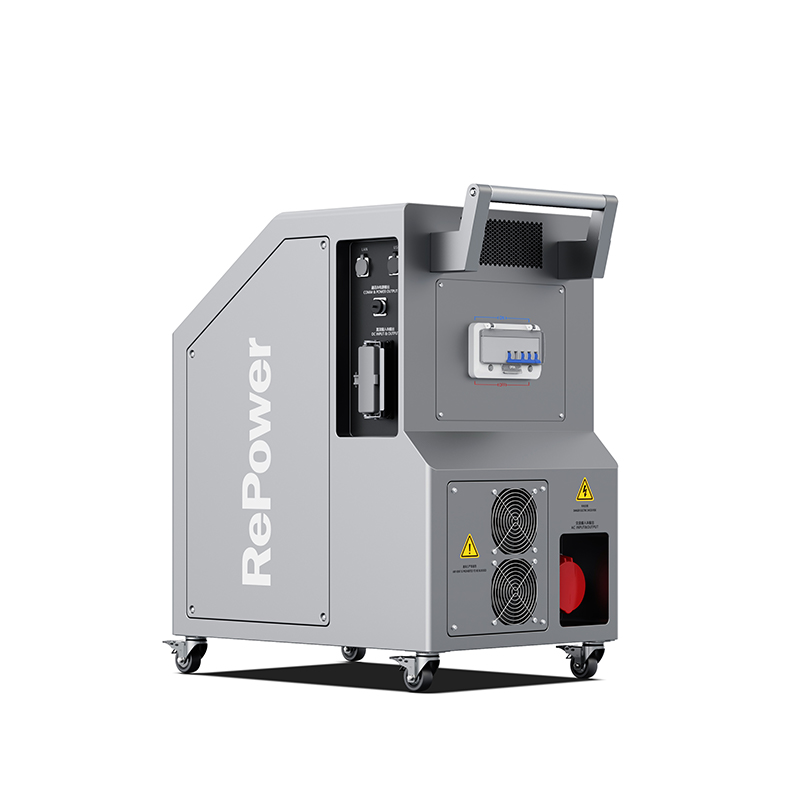

PTCDS-1000V70A-22kW / PTCDS-1000V140A-40kW
Portable Battery Pack Charge/Discharge Maintenance Tester PTCDS-1000V70A-22kW PTCDS-1000V140A-40kW |  |
Applications
Enables rapid voltage matching for EV battery packs, routine maintenance of complete battery packs or modules, and battery pack capacity calibration. It supports full-process data viewing and report generation and is suitable for charging, discharging, and charge/discharge cycle testing of various lithium battery packs.
Test Functions
Charge/Discharge Test | Voltage Test | Battery Pack Relay Control | Data Logging | ||||
Cycle Life Test | Temperature Test | Communication Test | Barcode Scanning Test |
Key Features
Wide-Voltage Charging and Discharging The wide-voltage design supports charge/discharge testing of battery packs at different voltage levels. | Cell and Pack-Terminal Voltage Acquisition Supports real-time acquisition of individual cell voltages and pack-terminal voltage. | Historical Data Storage and Export Automatically saves historical charge/discharge records and supports exporting historical data as Excel files. |
Preset Parameter Recall Operating mode, battery type, voltage thresholds, operating current, and other parameters can be preset and recalled with one click to run a test. | Data Visualization Provides real-time monitoring of individual cell voltage, pack-terminal voltage, pack-terminal current, charge/discharge status, and charge/discharge capacity. | Cell and Pack-Level Safety Protection Voltage protection thresholds can be set to prevent overcharging and overdischarging and protect individual cells. Pack-level protection includes overvoltage, undervoltage, overcurrent, output short circuit, reverse polarity, and overtemperature protection. |
| Product Specifications | |||
| Model | PTCDS-1000V70A-22kW | PTCDS-1000V140A-40kW | |
| Power Configuration | Three-phase + N + PE | ||
| Voltage Range | 260Vac~530Vac | ||
| Grid Frequency | 45Hz~65Hz | ||
| Output Voltage Range | 30Vdc~200Vdc | 200Vdc~1000Vdc | 150Vdc~1000Vdc |
| Output Current Range | 0~100A | 0~70A | 0~140A |
| Maximum Output Power | 22kW | 40kW | |
| Voltage Regulation Accuracy | ±0.5% | ||
| Current Regulation Accuracy | ≤±1% | ||
| Battery BMS Communication | Supports CAN and RS485 communication; reads and parses BMS CAN message data, which can be used as charge/discharge cutoff conditions | ||
| Ambient Temperature | -20°C~+55°C | ||
| Relative Humidity | ≤95% RH, non-condensing | ||
| Cooling Method | Forced-air Cooling | ||
| Equipment Dimensions | 500*740*885mm（L*D*H） | ||
Note: Refer to the applicable technical specification for the exact model and parameters.
