POREOL-6501EV

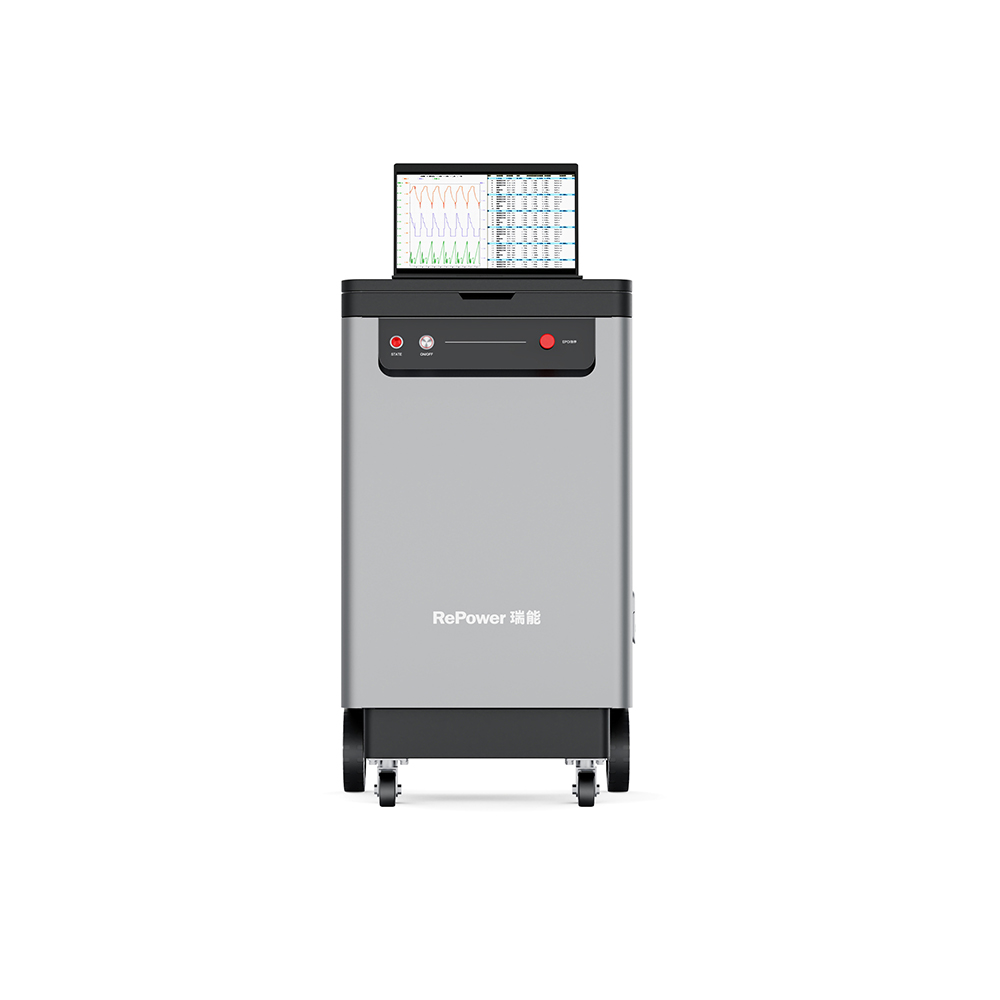

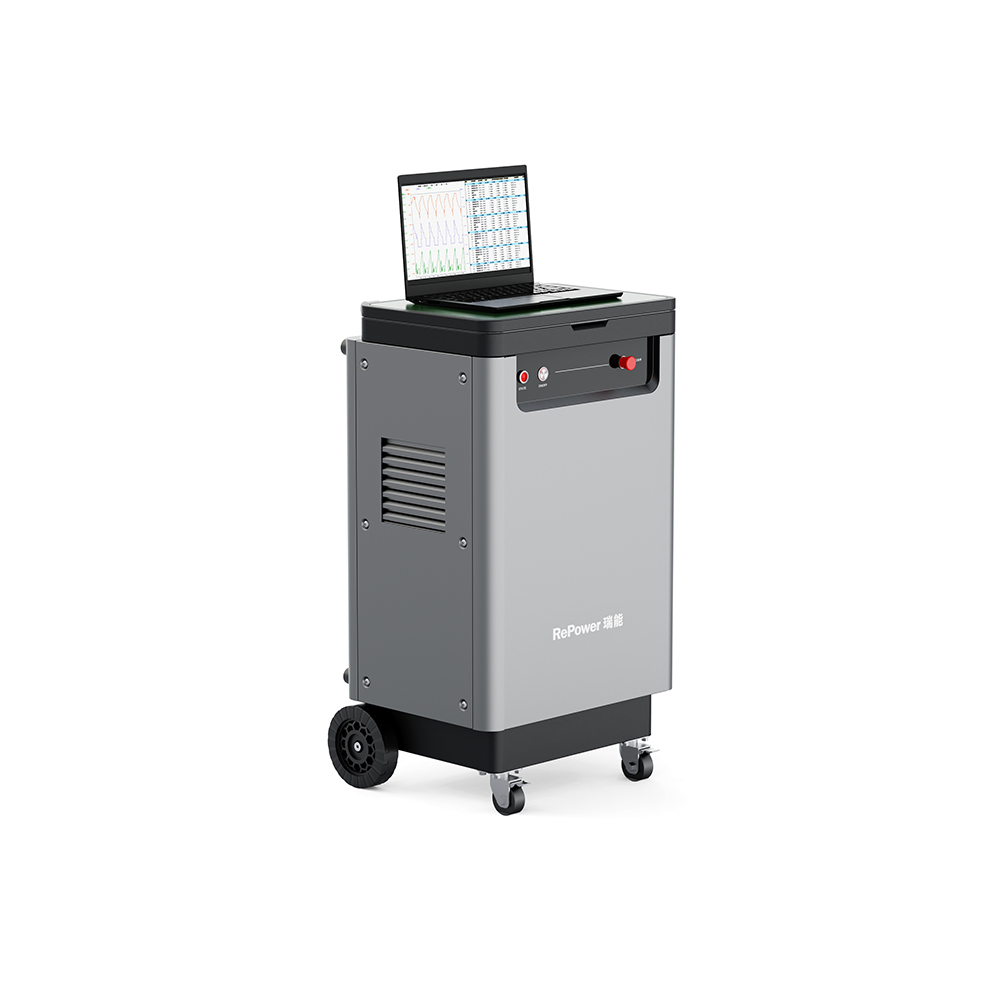

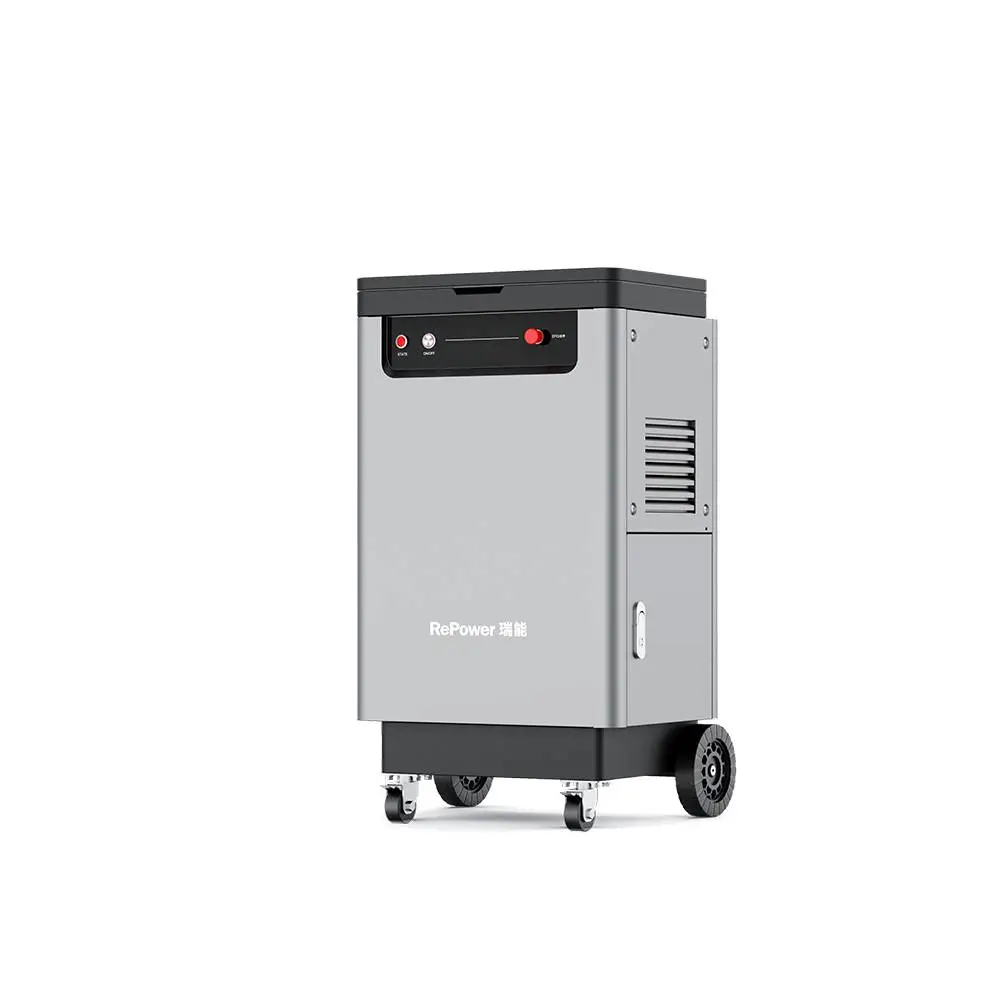

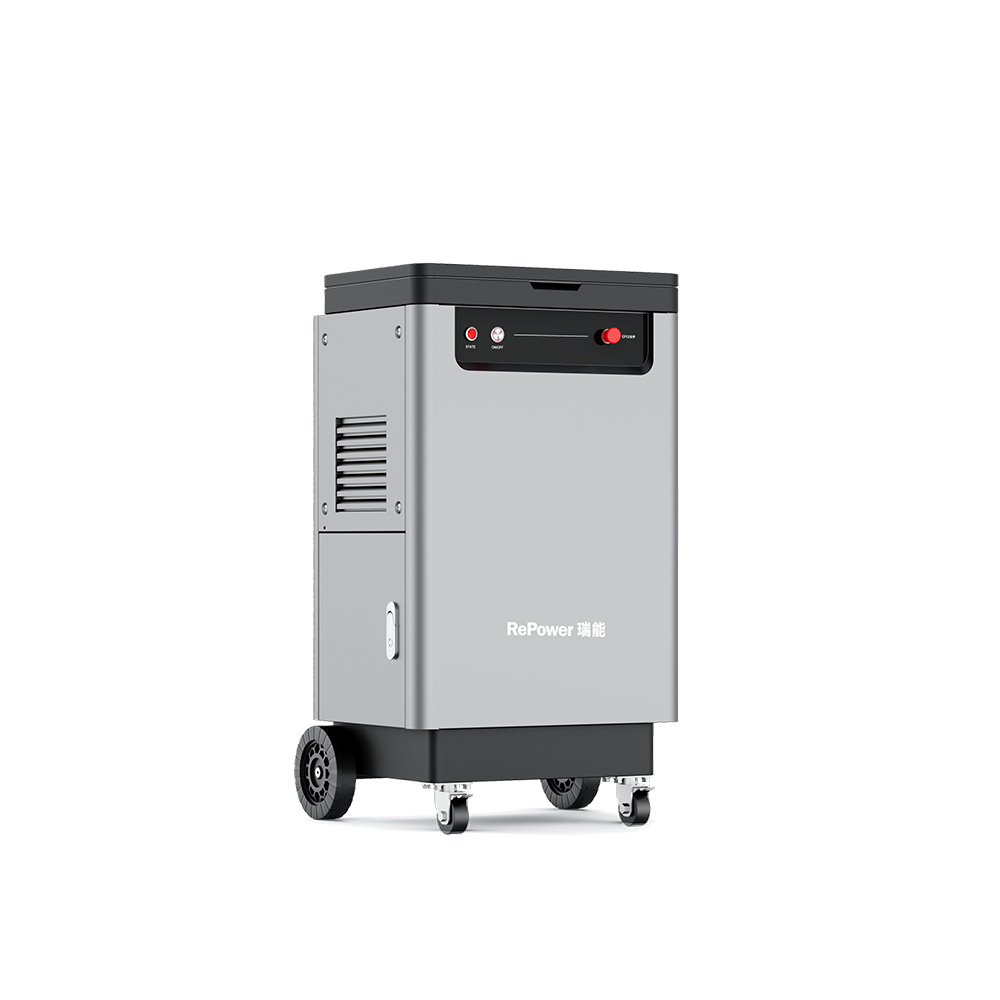

Portable EV Battery Pack EOL Test System POREOL-6501EV |  |
Applications
Primarily used for servicing EV, residential energy storage, and mobile energy storage battery packs, as well as spot checks of warehoused battery packs and servicing of returned battery packs.
Test Functions
Program Flashing/Upgrade | BMS Functional Test | Safety Compliance Test | UDS Communication Test | ||||
Pack Voltage Accuracy Test | Relay Functional Test | Ground Resistance Test | Surface Temperature Test |
Key Features
Smart Testing · Efficient and Accurate Proprietary intelligent test software supports data storage and downloads through host-computer software. It parses various BMS communication protocols and supports transparent transmission and parsing. Data is automatically saved in the event of a power failure, testing resumes seamlessly, and test reports can be generated online. | Extensive Functions · Broad Compatibility Highly compatible with EV battery packs, residential energy storage, and mobile energy storage systems, supporting both production validation and R&D testing modes. A wide range of external interfaces is provided for insulation withstand voltage testing, pack voltage testing, CAN communication, and more. |
Compact Footprint · Highly Portable Approximately the size of a 28-inch suitcase and easy to fit in a car trunk. Quiet swivel casters enable one-person transport directly to the customer site for convenient on-site use. | Built-in Power Supply · Extended Standby Time The built-in UPS provides up to 8 hours of standby time and 4 hours of continuous operation in areas with limited power or during outages. The IP32 rating supports use in most indoor and outdoor environments, including factories and warehouses. |
| Product Specifications | |
| Input Power Supply | 220Vac/50Hz |
| AC Withstand Voltage | 5kV/20mA |
| DC Withstand Voltage | 6kV/10mA |
| Insulation Resistance | 6kV/50GΩ |
| Voltage | Range: 200mV-1000V; Resolution: 61/2 digits; Accuracy: 0.01% |
| Resistance | Range: 0-200kΩ; Accuracy: 0.05%; Range: 200kΩ-10MΩ; Accuracy: 1%; |
| Power Outputs | AC：220V*1、DC：12V*1、DC：24V*1 |
| Communication | CAN FD*2; Baud Rate: 40K~5Mbps |
| Ingress Protection Rating | IP32 |
| Noise | <70dB |
| Enclosure Dimensions | 485*870*412mm（W*H*D） |
| UPS Runtime | Standby Time: ≥8H; Operating Time: ≥4H |
Note: Refer to the applicable technical specification for the exact model and parameters.
