From 280Ah to 2700Ah The Design Logic and Industrial Value of the RePower Large Cell Formation and Grading System

By mid-2026, energy storage cell specifications had already changed several times. At the beginning of the year, the industry was still ramping up 314Ah production lines. By midyear, equipment suppliers were presenting complete production-line capabilities for mass manufacturing cells in the thousand-ampere-hour class at major industry conferences. As capacities rise, the first process to come under scrutiny is often neither winding nor assembly, but the final stage before cells leave the factory: formation and capacity grading.

This process is becoming one of the most easily underestimated bottlenecks in large-cell mass production. Whether that bottleneck can be resolved depends on a set of figures that previously attracted little attention: the current the equipment can handle, the temperature range it can maintain, and how efficiently it uses each kWh of electricity.

As energy storage cells progress from 280Ah to the thousand-ampere-hour class, the severalfold increase in capacity changes the nature of the demands on formation and capacity grading. The challenge is no longer simply to perform more charge/discharge cycles. Larger cells set off a series of interconnected requirements.

Current is the first hurdle. Higher capacity requires higher charging and discharging currents during formation and grading, placing fundamentally different demands on power-module output and stability under sustained load. Approaches that worked for smaller cells by adding more equipment quickly encounter limits in both cost and reliability when applied to larger cells.

Thermal management follows closely. Large cells undergo more intense internal reactions during formation and generate substantially more heat. Temperature uniformity directly influences the interfacial properties and consistency of the cells after formation. For energy storage cells, consistency is especially valuable: differences in the degradation of a single cell can reduce the usable capacity of an entire battery cluster. Temperature-related defects introduced during formation and grading can have amplified consequences by the tenth year of a storage plant's operation.

Energy consumption is the third pressure point. Industry estimates indicate that formation and grading equipment typically accounts for nearly 30% of an entire production line's energy use, making it one of the most energy-intensive stages of cell manufacturing. Once production reaches GWh scale, its electricity bill can no longer be treated as a minor overhead. More importantly, as carbon border charges take effect and carbon-footprint accounting becomes stricter, downstream customers are tracing the manufacturing energy consumption of individual cells back to their source. Electricity efficiency is therefore becoming an export-compliance issue as well as an operating cost.

Product changeover is the final challenge. Energy storage cell designs are still evolving. Formats such as 314Ah, 500Ah and 587Ah, as well as thousand-ampere-hour products, may coexist for years on different lines within one factory, or even on the same line. The ability of formation and grading equipment to change over quickly and support mixed production of multiple cell formats directly affects overall line utilization.

None of these four challenges can be solved simply by scaling up older equipment.

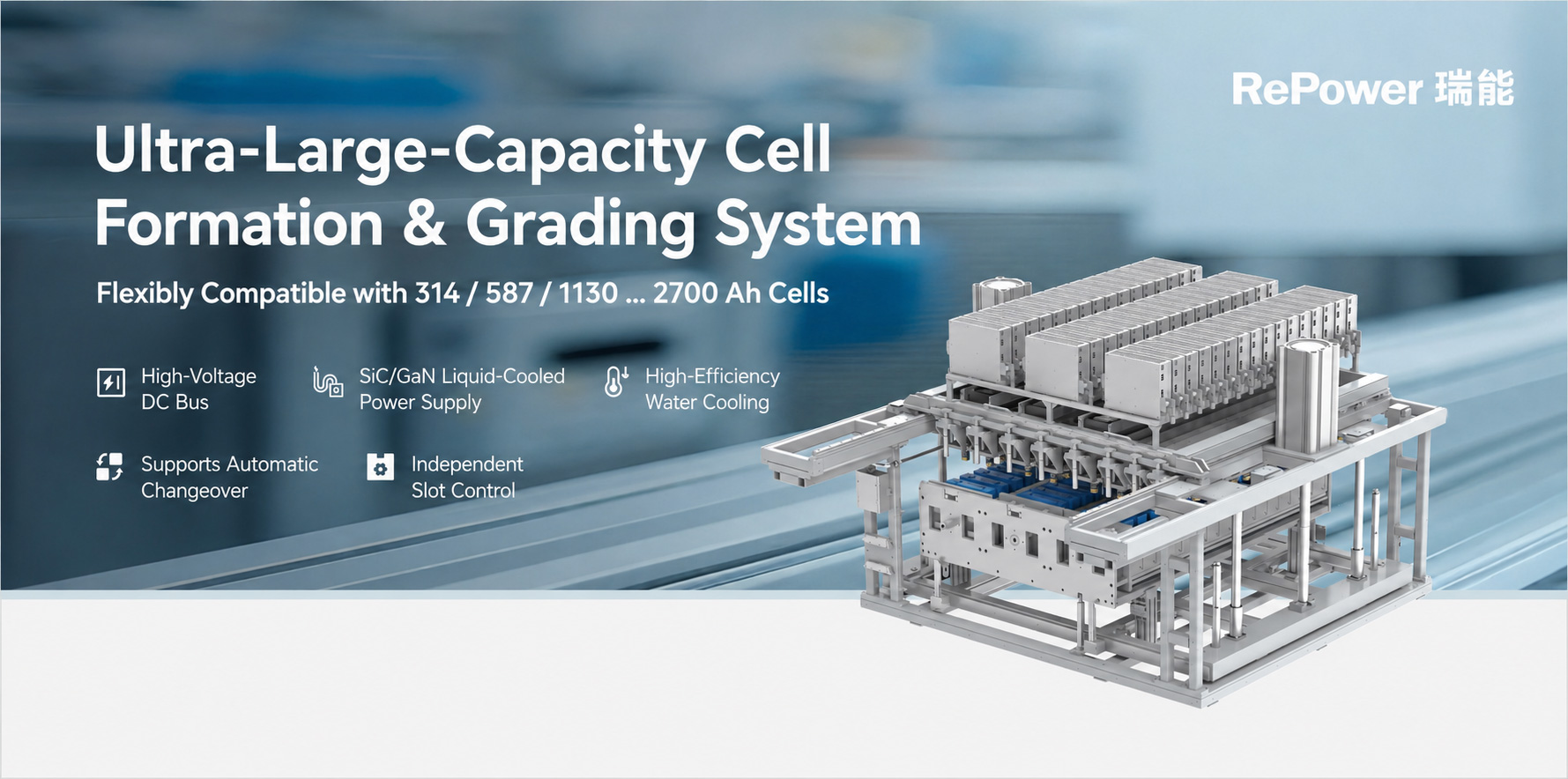

To address these requirements for high-capacity energy storage cells, RePower redesigned the system from its underlying architecture rather than making isolated modifications to an existing product line. The resulting Ultra-large Cell Formation and Grading System focuses on three principal areas of innovation.

The first is the power architecture. Conventional formation and grading lines often use distributed power supplies, creating multiple branch circuits and bus connection points that add losses and potential failure points. RePower introduces a high-voltage DC bus architecture combined with SiC/GaN water-cooled power modules. This substantially shortens the power-transfer path from the grid to the cell and achieves system voltage accuracy of 0.02% F.S. For the production line, this means lower wiring losses and more stable power delivery. For capacity grading, accuracy of two parts in ten thousand supports more clearly defined capacity-grade boundaries.

On the discharge side, the system achieves 85% efficiency. Capacity grading essentially involves discharging the energy previously charged into a cell, so discharge efficiency determines how much energy is lost at this stage. Higher efficiency lowers the energy cost of grading the same batch of cells. For grading lines operating at full load throughout the year, differences of just a few percentage points translate directly into electricity costs.

The second area is temperature control. To manage the concentrated heat generated by large cells, RePower uses an integrated liquid-cooling solution that incorporates the cooling system into the equipment, replacing conventional external air cooling and separate auxiliary systems. Battery temperature uniformity is maintained within ±2°C. This enables large batches of cells on the same line to experience nearly identical formation conditions. A uniform temperature field establishes a foundation for cell consistency before subsequent testing begins.

The third area is control granularity. Each processing position can be controlled independently. Even when cells from different batches or with different specifications share the same line, each position can follow its own charge/discharge process profile without constraining the others. Automatic multichannel changeover allows the equipment to switch between 24-channel and 48-channel configurations. The RePower system supports current mainstream energy storage cell formats through to the 2700Ah class, providing capacity headroom for the industry's expected development over the coming years.

For production planners, the implication is straightforward: a line purchased today need not be replaced when the next generation of cell specifications arrives. Equipment that can adapt to larger cell formats provides lasting value in capital investment.

Energy efficiency is among the most easily underestimated benefits of advanced formation and grading systems for large cells.

The energy intensity of formation and grading makes it a major contributor to a cell factory's electricity bill. Equipment design can create substantial differences in the energy cost of processing the same batch of cells. Whether discharge energy is recovered, how the bus architecture is configured, and whether cooling is integrated all affect the final cost.

The RePower Ultra-large Cell Formation and Grading System was designed with energy efficiency as a standard system-level capability, not an optional feature. Its high-voltage DC bus reduces transmission losses, energy recovery recaptures discharge energy, and integrated liquid cooling reduces auxiliary power consumption. Together, these measures can reduce overall production-line energy consumption by approximately 50% compared with conventional processes that have not been retrofitted for energy recovery. Using a 1GWh grading operation as the calculation benchmark, estimated annual electricity savings are approximately 8.2 million kWh, a substantial reduction in both electricity costs and carbon footprint.

The system also includes an interface for PV expansion, allowing coordinated operation with the factory's PV and energy storage systems to support peak shaving and valley filling for production loads. For a company that manufactures energy storage cells, applying coordinated PV and storage to its own production line reduces both emissions and costs.

For cell-factory operations managers, these quantified savings make a stronger case than general claims about green manufacturing because they directly affect the income statement.

Formation and grading lines for large energy storage cells require substantial capital investment, and an unsuitable equipment choice is costly to correct. Experienced buyers therefore evaluate more than the specification sheet of an individual machine. They assess whether the supplier covers the complete process from testing to formation and capacity grading; whether power electronics, temperature control and software share a coherent technology platform rather than being assembled from unrelated components; whether the supplier has delivered production lines at scale; and whether the equipment can be upgraded for the next generation of cells.

These criteria align with the capabilities RePower has developed over many years. As a supplier of lithium-ion battery testing and formation and grading equipment, RePower covers key stages from R&D and mass production to aftermarket O&M. A consistent technology platform reduces hidden costs during integrated line commissioning and subsequent maintenance. The value of a RePower formation and grading line lies not in a few isolated headline specifications, but in the complete system's ability to deliver its rated performance consistently over extended operation on real production lines.

Energy storage cell capacities will continue to grow, and formation and grading requirements will evolve with them. RePower's Ultra-large Cell Formation and Grading System addresses these requirements through targeted power-architecture, temperature-control and independent-control solutions, offering the industry a practical approach to the bottlenecks in processing large cells.
