Voltage Range 1500V

Current Range 200A/400A/600A

Accuracy ± 0.05% F.S

Current response time 5ms (10%~90% F.S)

Current switching time 10ms (-90%~90% F.S)

Equipment size According to actual configuration

+86 755 26703611

Reservation Now

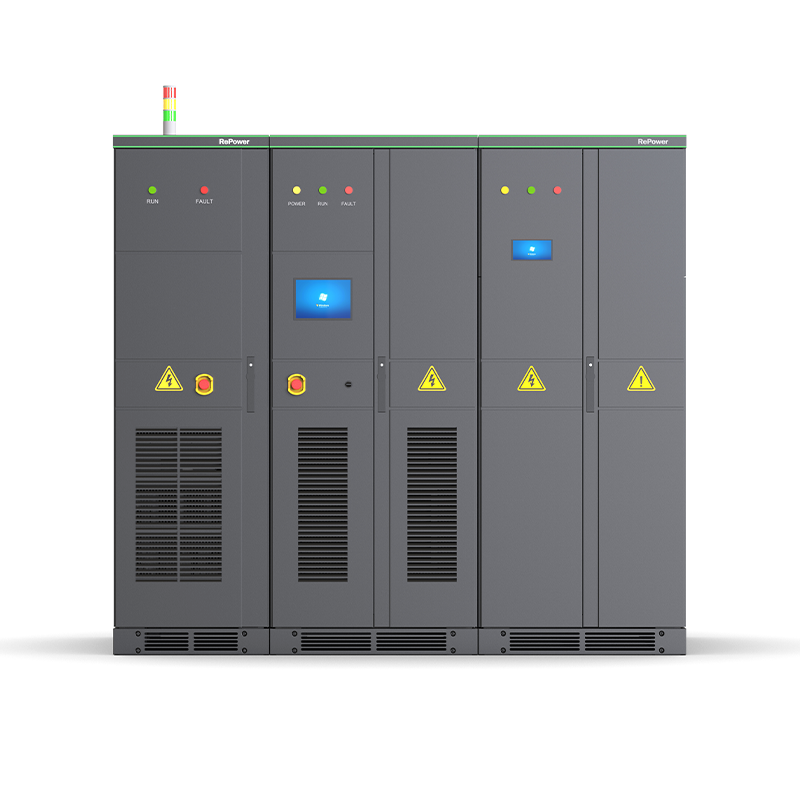

EV PACK / ESS Cluster Tester

RCDS-1500V 200A/400A/600A

CE ETC.png

Application

RePower high voltage high current battery test system adopts advanced instrumentation technology and power electronics technology to develop energy feedback type testing equipment, which is suitable for new energy vehicles, energy storage, battery packs and other lithium or lead-acid battery pack testing and quality control.

Testing Functions

Conditional Pulse Test
Matrix Test
Charge Retention Capability
Dynamic & Static SOC Test
Cycle Life Test
Temperature Characteristics Test
Capacity Test
DCIR Test

Product Parameters
Voltage	Scope	1500V
	Accuracy	± 0.05% F.S
	Resolution	1mV
Current	Scope	200A/400A/600A
	Accuracy	± 0.05% F.S
	Resolution	1mA
Current response time		5ms (10%~90% F.S)
Current switching time		10ms (-90%~90% F.S)
Minimum operating interval		20ms
Communication		LAN
Third-party/auxiliary module linkage		Supports linkage between temperature box, MTV/MTS, I/O control box, chiller, etc.
Equipment size (WDH mm)		According to actual configuration
