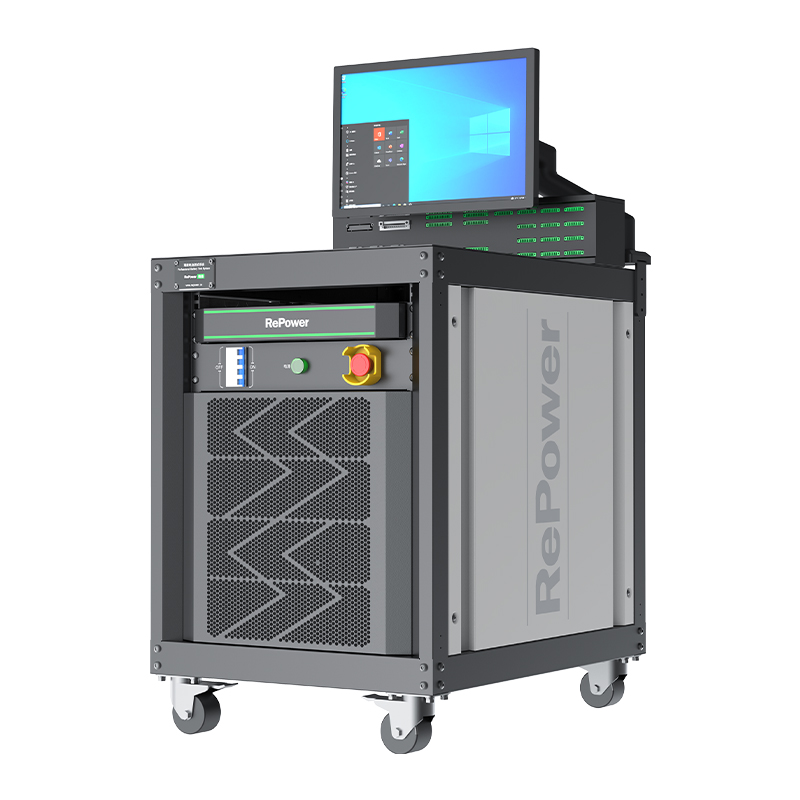

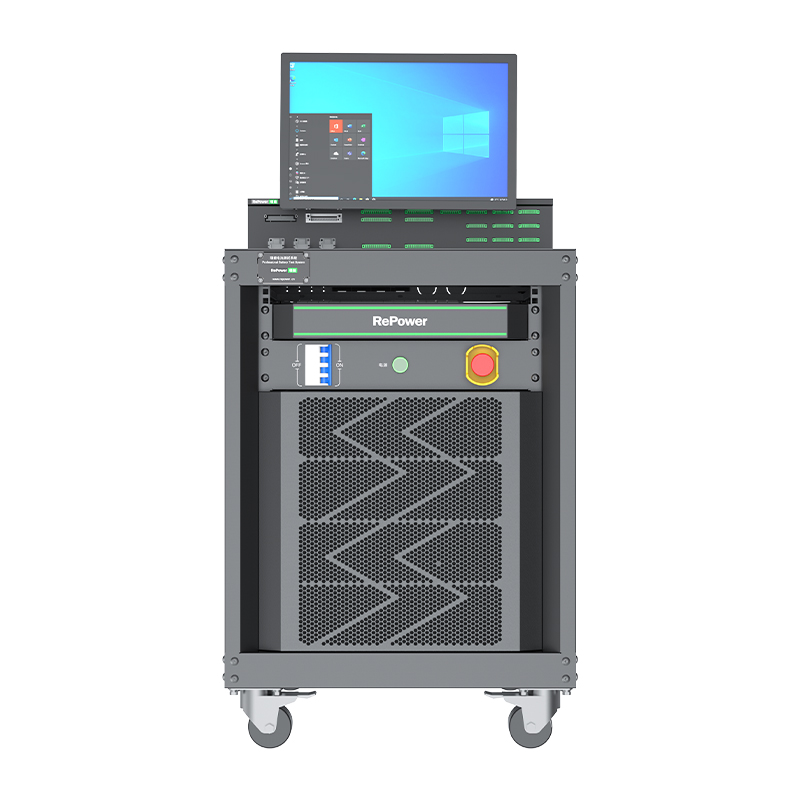

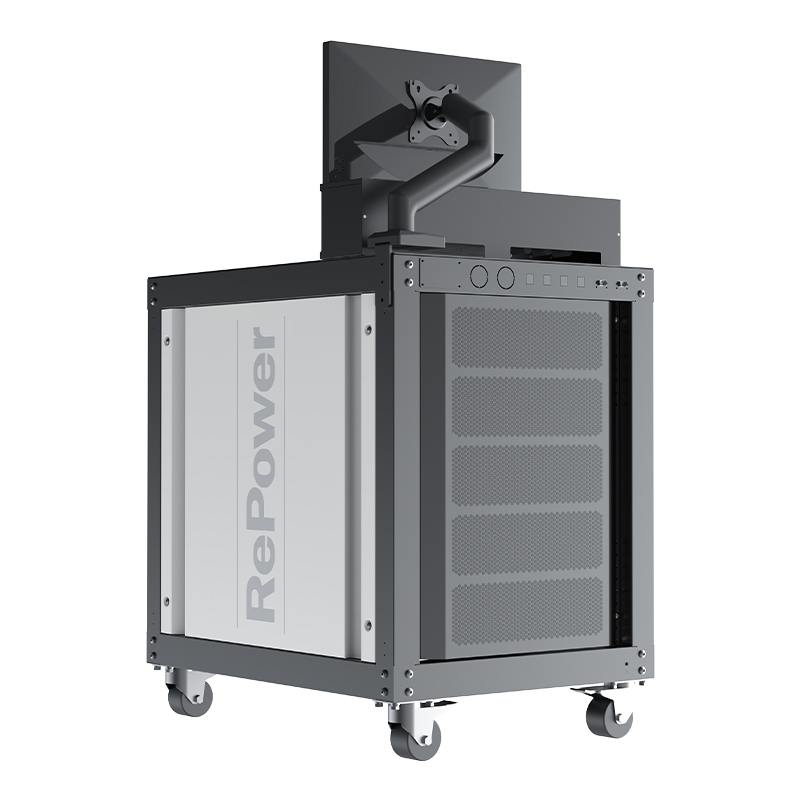

PCBA Test System

Power Battery Protection Board Test System

PCBA-16~36S   100A/200A/300A

Application

Used for testing power battery pack protection board systems. This system performs comprehensive performance and technical parameter testing of the entire PCBA and generates detailed test reports.

Testing Functions

• Balanced Current Measurement Verification

• Over-charge and Over-discharg Measurement Verification

• Quiescent   Current Measurement

• Protection Delay Time Measurement

• Charge and Discharge Protection

• On-resistance Test

• Current Limiting Test

• Temperature Protection Test
