MTVS

share
WeChat
copy Link
Facebook
X
LinkedIn
Whatsapp
Voltage Range 0~5V/10V/20V
Current Range /
Accuracy ± 0.05% F.S
Current response time /
Current switching time /
Equipment size 482*147*43.5mm
+86 755 26703611
Reservation Now

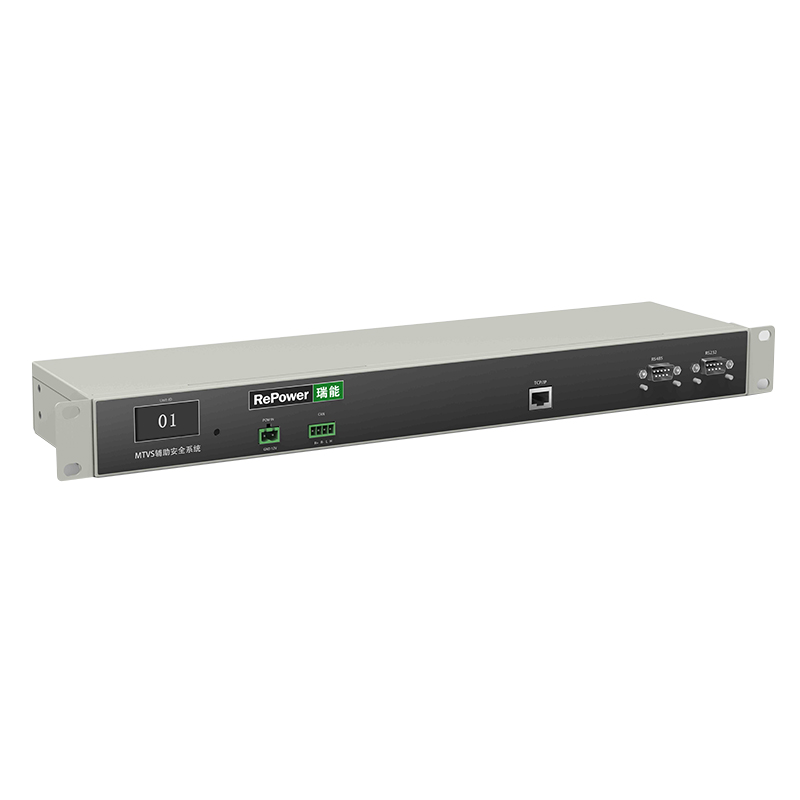

MTVS Auxiliary Safety System




Applications

Coordinate with charge/discharge device to   monitor and collect data of voltage, current temperature, pressure of battery cell, battery module, and battery pack, to guarantee battery testing safety and performance consistency.




Advantageous Features

  • 40 channels of voltage, 8 channels of thermocouple temperature acquisition, 4 channels of relay output, 4 channels of I/O input;

  • Modular design, able to extend measurement channel as needed;

  • Support LAN, RS485 communication protocol.




Product Parameters

Items

ChannelsTesting rangeAccuracyResolution

Voltage

40CH

0-5V/10V/20V

±0.05%F.S
1mV
Temperature

8CH

-50℃-300℃

±1℃0.1℃
Pressure

40CH

Depend on pressure

sensor range

±0.1%F.S1mMPa

Current

40CH

±0.1%F.S1mA
