Voltage Range 0V~100V
Current Range ±30A / ±60A
Accuracy ± 0.05% F.S
Current response time 4ms (10%~90% F.S)
Current switching time 5ms (-90%~90% F.S)
Equipment size 600*850*1030mm / 600*800*1980mm
+86 755 26703611
Reservation Now

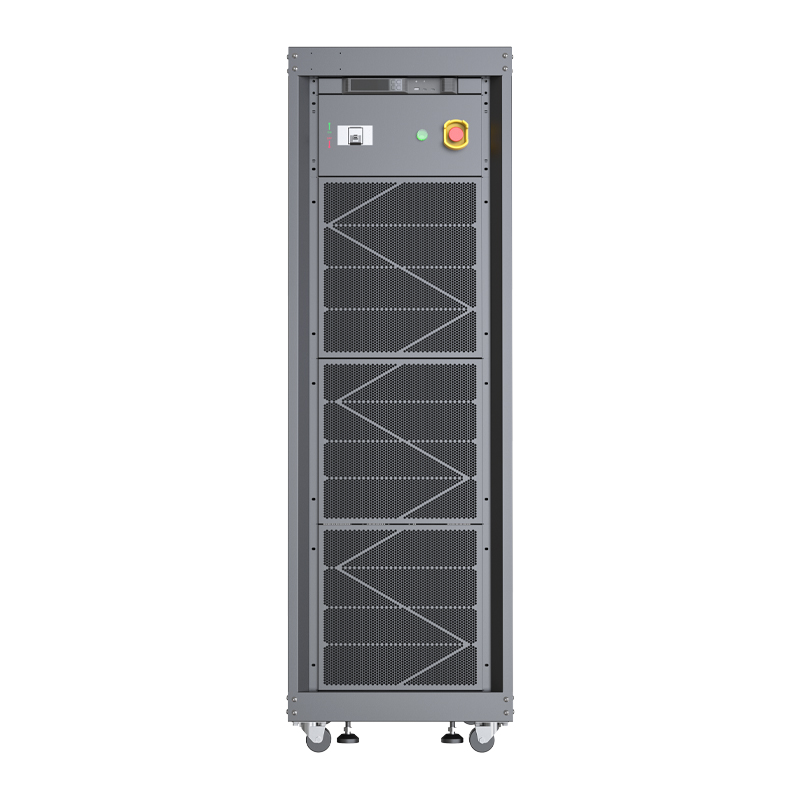

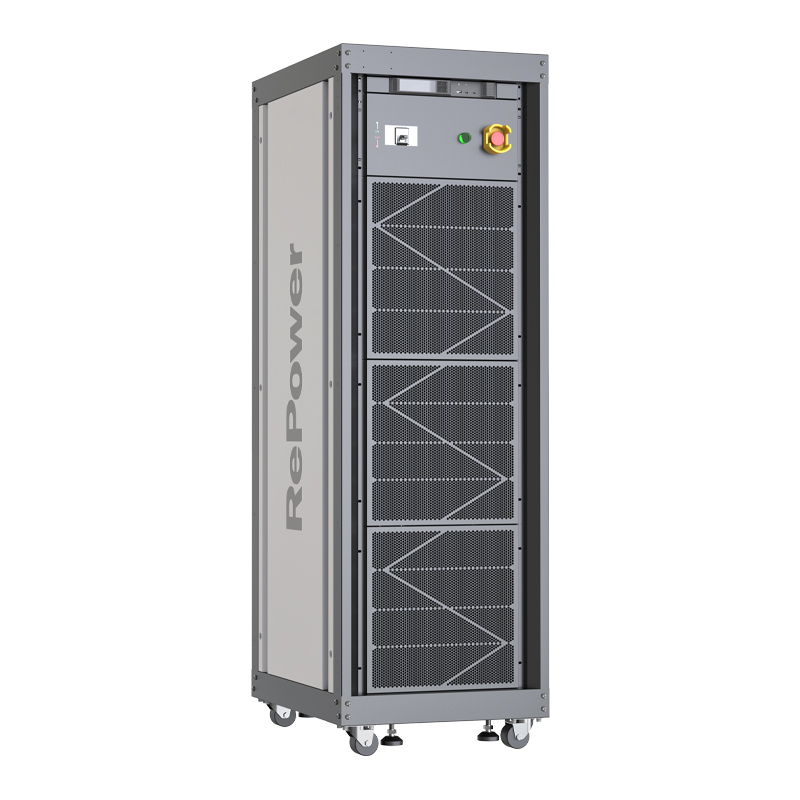

Module / PACK Tester

HRCDS-100V30A-C / HRCDS-100V60A-C



Application

This system is designed for testing lithium or lead-acid battery packs used in electric bicycles, power tools, e-motorcycles, drones, medical devices, robotic vacuums, balance scooters, and vacuum cleaners. It is suitable for production lines and quality control, enabling integrated monitoring of charge/discharge data.



Testing Functions

  • Cycle Life Test

  • Capacity Test

  • Charge and Discharge Test

  • Temperature Characteristics Test

  • Charge Retention Capability

  • Working Condition Pulse Test

  • Overcharge/ Overdischarge Test

  • DCIR Test



Product Parameters

Model No.:

HRCDS-100V60A-CHRCDS-100V30A-C

Single Channel Voltage

Single-channelmeasurement range

0V~100V

Minimum Discharge Voltage

5V (Device portoutput)

3V (device portoutput)

Accuracy

± 0.05% F.S

Resolution0.1mV

Single Channel Current

Single ChannelMeasurement Range

±60A

±30A

Minimum Output Current

50mA

Accuracy

± 0.05% F.S

Resolution

0.1mA

Current response time

4ms (10%~90% F.S)

Current switching time

5ms (-90%~90% F.S)

Minimum operating interval

10ms

Device and control computer communication method

LAN

Battery BMScommunication

Support CAN; RS485 communication; UART TTL communication(with adapter box)
Support DBC import, can realize data reading with BMSCAN, and participate in process control.

Third-party/auxiliary module linkage

Support linkage with temperature box, MTV/MTS, pressure sensor, etc.

Equipment size (W*D*H mm)

600*800*1030 / 600*800*1980
