Voltage Range 100V~500V
Current Range 100A/150A/200A/300A/400A/600A
Accuracy ± 0.03% F.S
Current response time 3ms (10%~90% F.S)
Current switching time 5ms (-90%~90% F.S)
Equipment size 600*850*1030mm / 600*800*1980mm
+86 755 26703611
Reservation Now

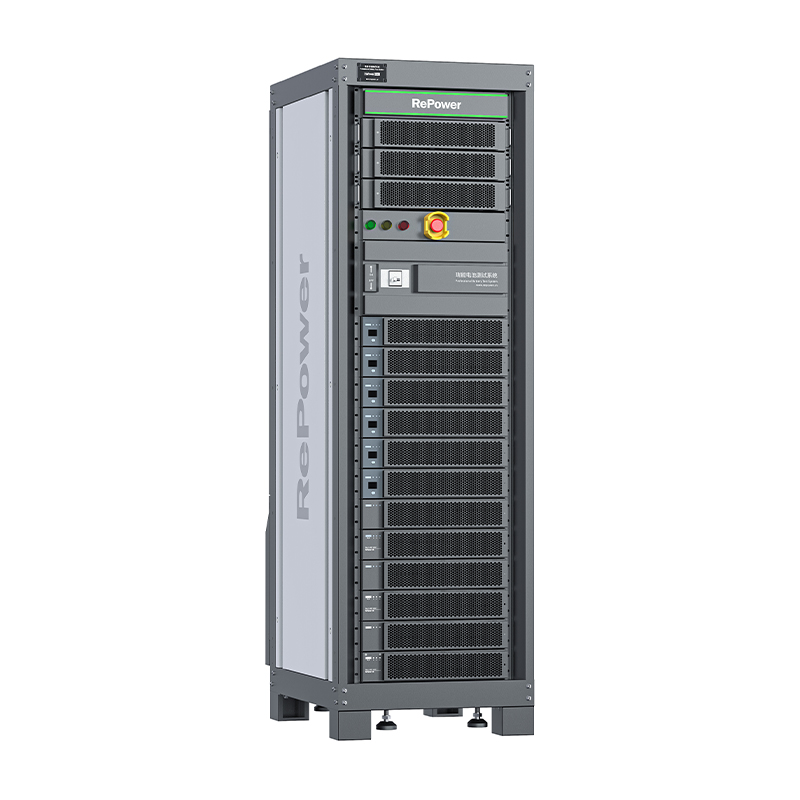

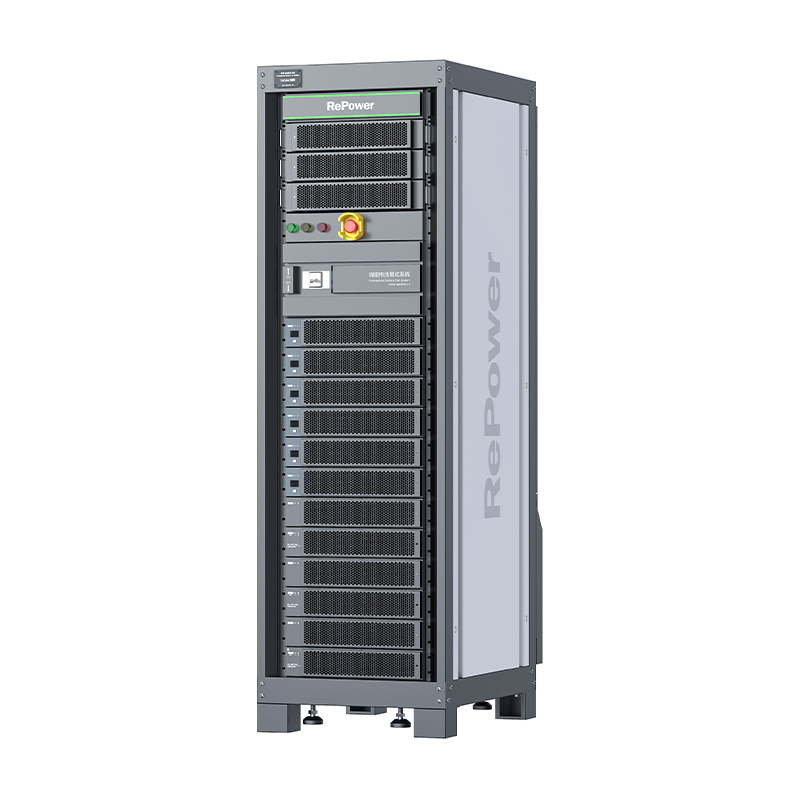

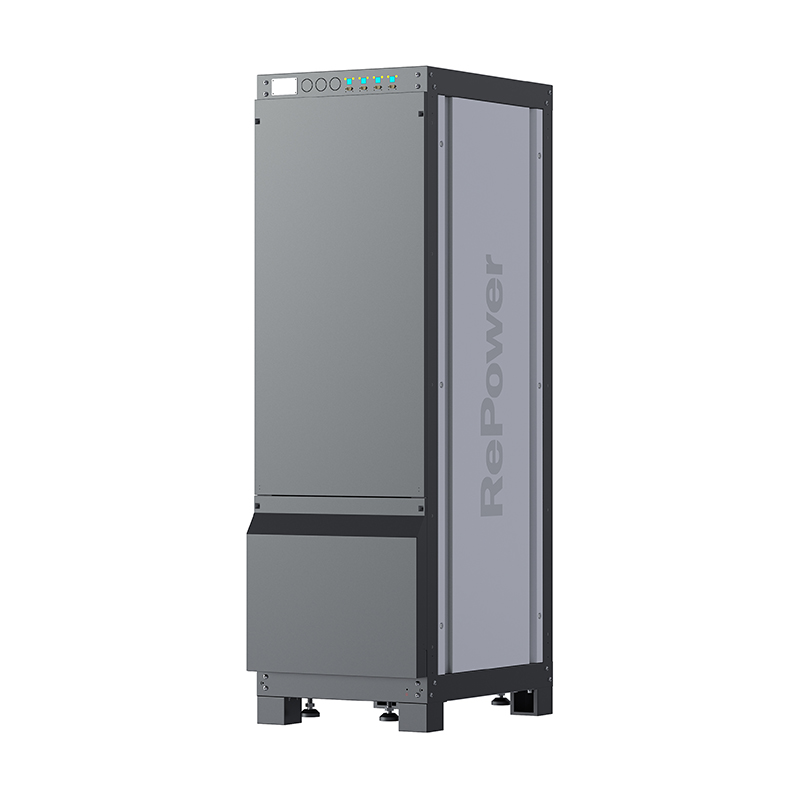

Module / PACK Tester

HRCDS-100V~500V   100A/150A/200A/300A/400A/600A



Application

This system is mainly used for new energy vehicles, energy storage, modules, PACK battery systems, and other lithium or lead-acid battery group testing and quality control. Enables integrated charge-discharge data monitoring.




Testing Functions

  • Conditional Pulse Test

  • Matrix Test

  • Capacity test

  • Dynamic & Static SOC Test

  • Cycle Life Test

  • Charge/Discharge Test

  • Temperature Characteristics Test

  • DC Internal Resistance Test



Product Parameters

Voltage

Scope

100V~500V

Accuracy

± 0.03% F.S

Resolution1mV

Current

Scope

100A/150A/200A/300A/400A/600A

Accuracy

± 0.03% F.S

Resolution

1mA

Current response time

3ms (10%~90% F.S)

Current switching time

5ms (-90%~90% F.S)

Communication

LAN

Third-party/auxiliary module linkage

Support linkage with temperature box, MTV/MTS, I/O control boxes, etc.

Equipment size (W*D*H mm)

600*850*1030 / 600*800*1980
