Voltage Range Module：300V Max. | PACK：2000V Max.

Current Range 0~1000A

Accuracy /

Current response time /

Current switching time /

Equipment size 850*800*1980mm

+86 755 26703611

Reservation Now

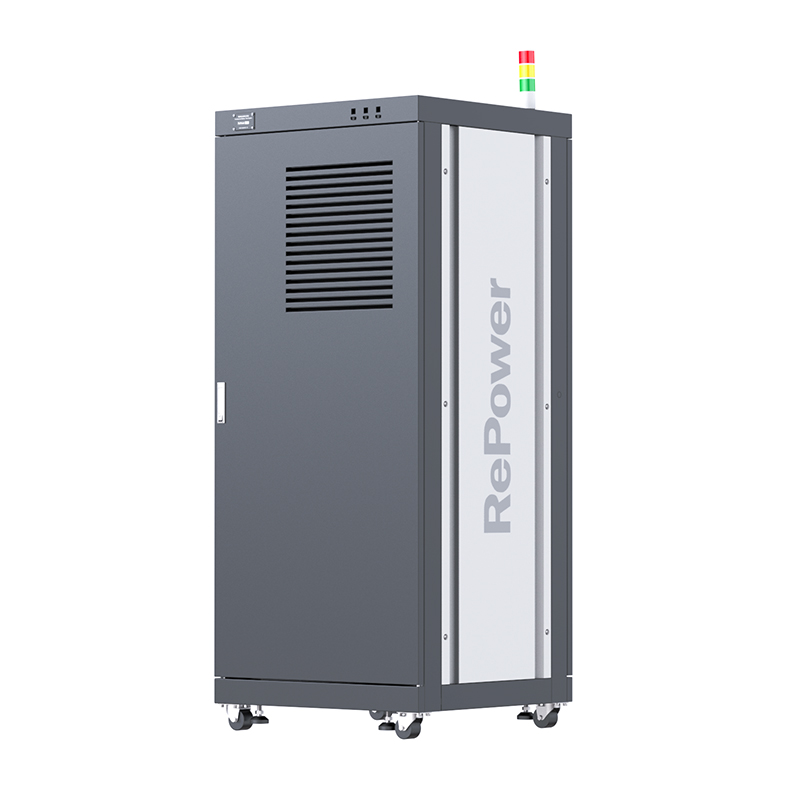

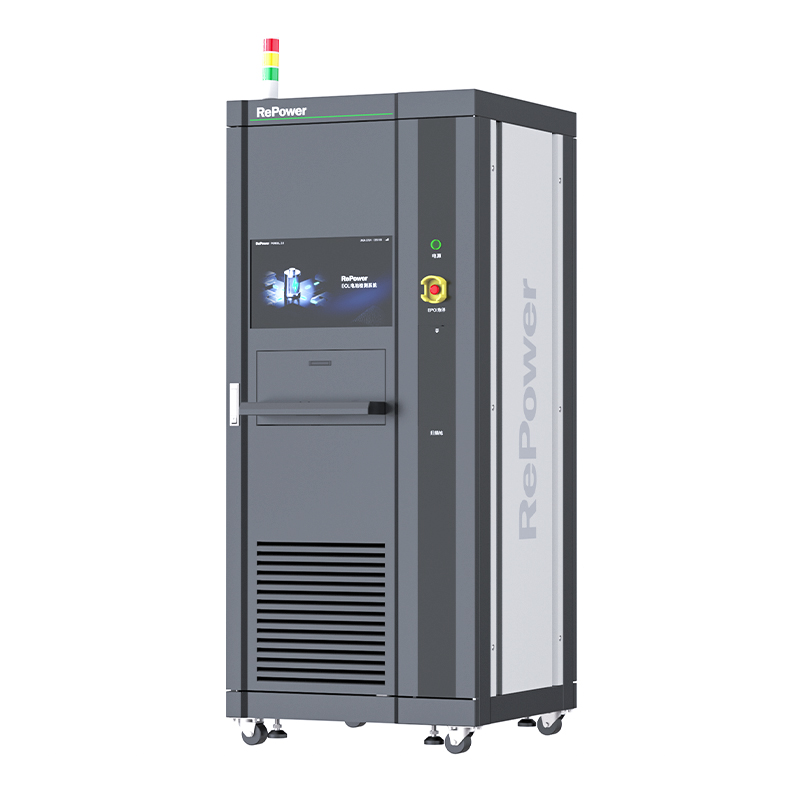

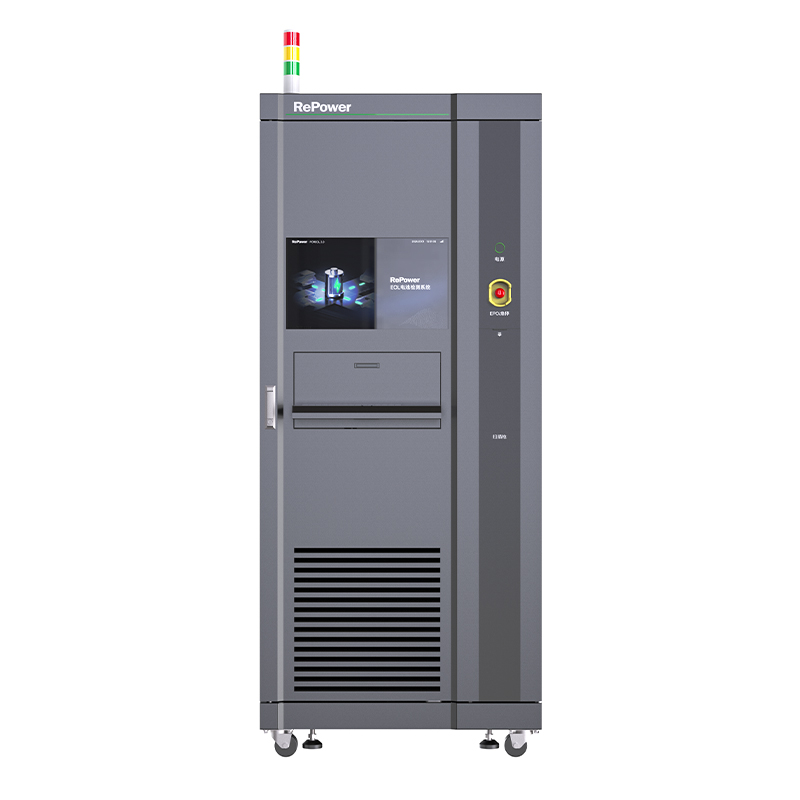

EOL Tester

RP-EOL-CEP01~04 / RP-EOL-CEM02~04 / RP-EOL-CEPro

RP-EOL-ULP01~04 / RP-EOL-ULM02~04 / RP-EOL-ULPro


Application

Designed for battery modules/PACKs for electric vehicles, buses and various energy storage systems, it integrates automated testing, data analysis and efficiency optimization functions, providing one-stop static testing solutions covering off-line inspection and quality control.

Testing Functions

Safety test	Insulation resistance test,DC/AC withstand voltage test, equipotential test
Electrical Performance Test	TotalVoltage, Total Internal Resistance, Voltage difference, NTC Accuracy, BMS PowerConsumption
BMS communication andfunction test	CAN/CANFD, RS485 communication, DBC analysis, UDS diagnostics, CAN terminalresistance
Signal Simulation Test	PWM signal simulation, collision signalsimulation, charging gunsignalsimulation,high-voltage interlock simulation, insulation leakage simulation.

Product Parameters
Open-circuit Voltage	Module	1000V Max
	PACK	2000V Max
AC WithstandingVoltage		5KV/100mA
DC Withstanding Voltage		6KV/7.2KV/10mA
Insulation resistance		6KV/99.99GΩ
Ground resistance		25A/600mΩ
AC Resistance ACIR		0.1mΩ~3KΩ
BMScommunication module		Supports CAN2.0A/B, CAN FD, CAN OE, LIN, RS232, RS485
UDS Diagnostics/Unlocking		Supported
Specialcustom module		DCIR,Oscilloscope, Air Tightness Tester, etc. can be integrated.
Protection Rating		IP32
Cabinet size（WDH mm）		8508001980
