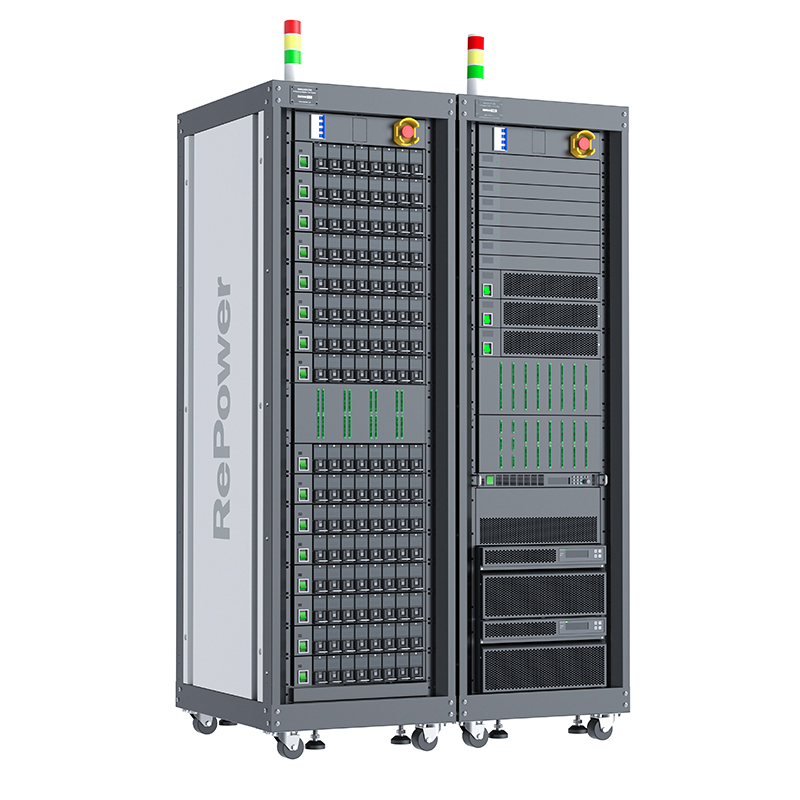

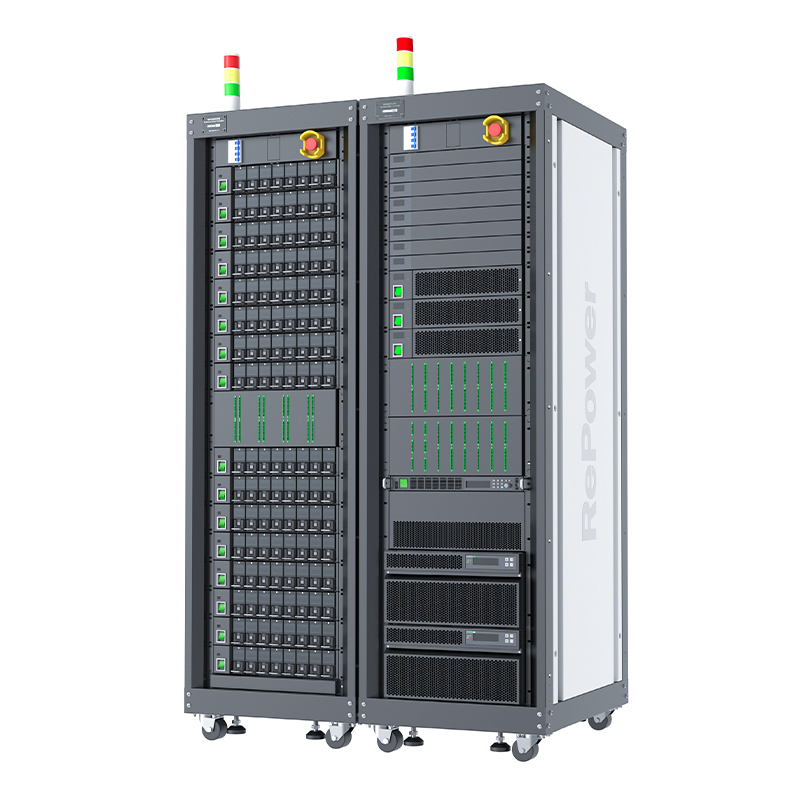

BMS-6V

share
WeChat
copy Link
Facebook
X
LinkedIn
Whatsapp
Voltage Range 0.1~6V
Current Range ±3A/±5A/±10A | 0~200mA | 0~2mA
Accuracy ±0.01%F.S
Current response time /
Current switching time /
Equipment size /
+86 755 26703611
Reservation Now

BMS Tester

BMS-6V    3A/5A/10A-24S~480S-200A~1000A




Application

Designed for BMS calibration, verification, and functional testing during the R&D and production of electric vehicle and energy storage system battery packs. The system generates complete and detailed test reports.




Testing Functions

  • Multi-state power consumption test

  • Active-passive balancing current test

  • BMS acquisition accuracy test

  • Fault simulation and test

  • Switching signal simulation and test

  • Insulation resistance test and verification

  • National standard charging signal simulation

  • SOX test




Product Parameters

Virtual Battery

Voltage range

0.1~6V

Voltage Resolution 0.01mV
Voltage Accuracy ±0.01%F.S
Current Range1

Range

±3A / ±5A / ±10A

Resolution0.01mA
Accuracy±0.01%F.S
Current Range2Range0~200mA
Resolution0.01mA
Accuracy±0.01%F.S
Current Range3Range0~2mA
Resolution0.01uA
Accuracy±0.01%F.S
DC HighVoltage Power Supply
Voltage Range 0~2000V
Resolution100mV
Voltage Accuracy±0.1%F.S
Current Range0~900mA
High Accuracy Constant Current Source
Current Range ±200A~±1000A
Current Accuracy±0.05%F.S
Resolution1mA
ProgrammableResistance Unit
Resistance Range 10Ω~12MΩ
Resistance Resolution1Ω
Resistance Accuracy±0.15%±1Ω
